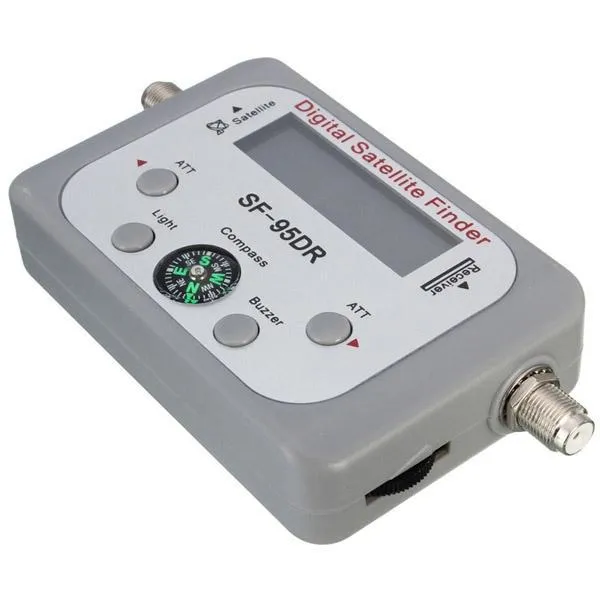

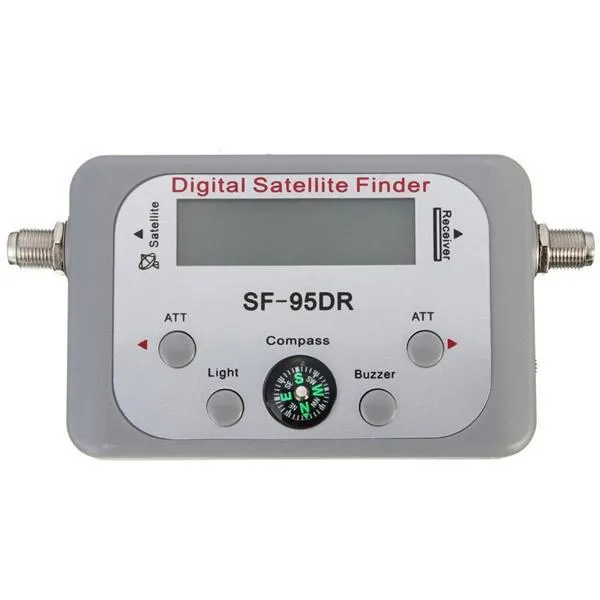

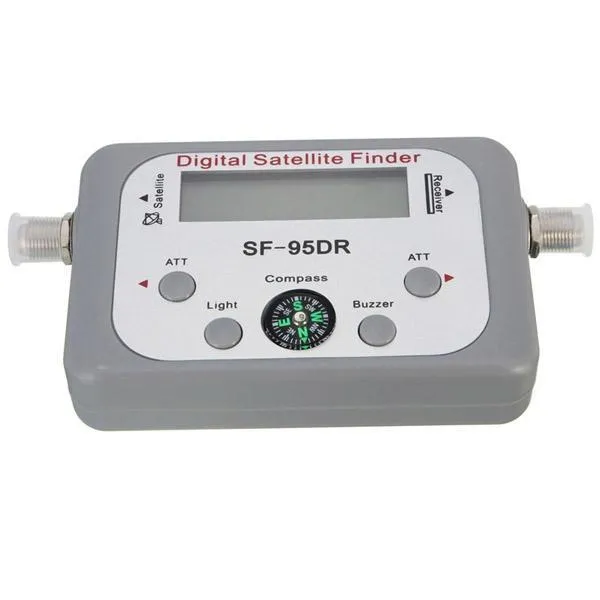

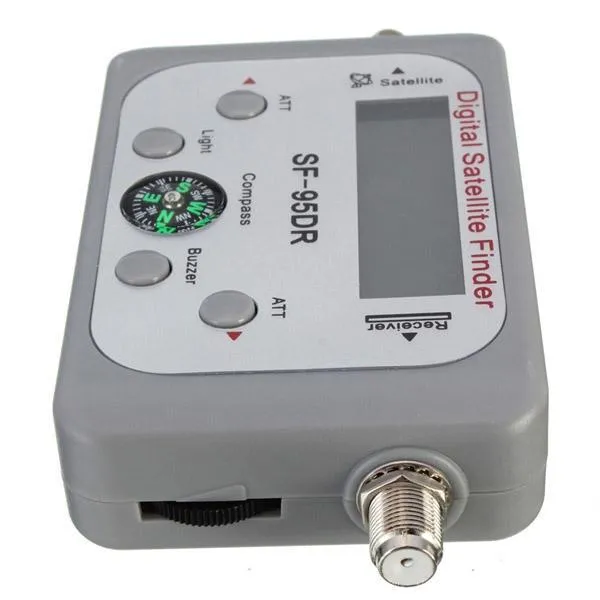

Features
- Professional digital LCD satellite finder
- With it, the digital satellite finder can automatic search, you can get professional satellite singal performance & results without a second helper
- Built-in light & electric buzzer

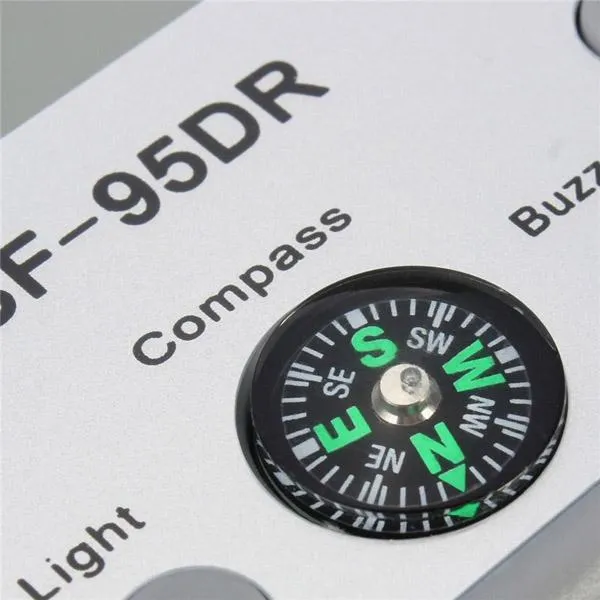

- Bulit-in compass
- LED backlight display

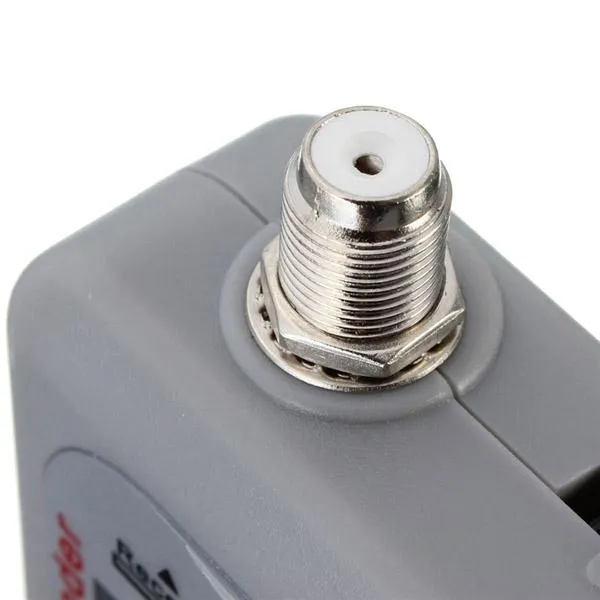

- LNB connecting port and receiver connecting port
Specifications

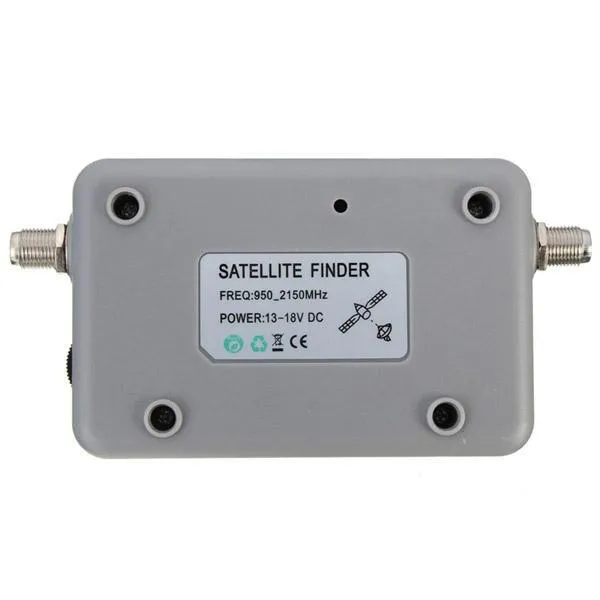

| Input Frequency | 950-2150 MHz |
| Input Impedance | 75O hm, F-connector |
| Operating Range | LNB Gain : 52 - 60 dB |
| Input Level Min | -40 dBm |
| Input Level Max | -10 dBm |
| Output Impedance | 75 Ohm, F-connector |
| Power Supply | DC 13 - 18V |
| Weight | 5.25 oz (150 g) |
| Color | Gray, Blue (Optional) |

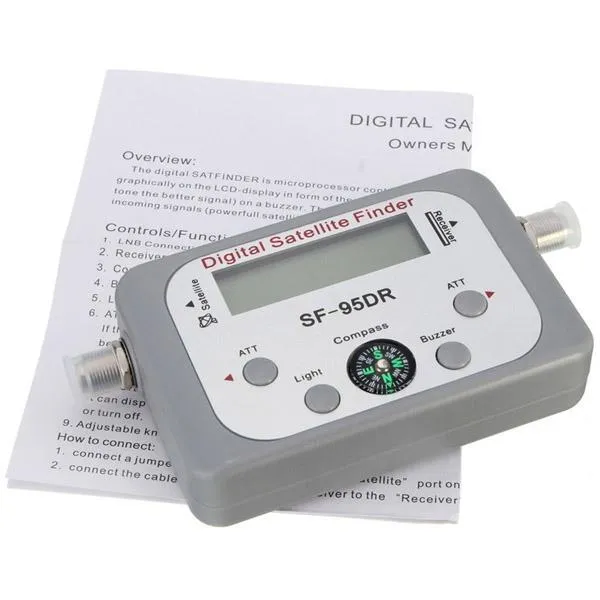

Package Includes
- 1 x LCD Digital Satellite Signal Meter Finder
- 1 x User Manual
Package Includes
How to Connect :
1. Connect a jumper cable from the LNB to the "Satellite" port on the digital satfinder
2. Connect the cable from the satellit receiver to the "Receiver" port on the digital satfinder
Operation :
1. Switch the satellit receiver on, the digital satfinder will on by itself
2. Set the dish to the proper azimuth and elevation settings
3. Adjust the knob until the signal strength display at 0%
4. Peak the signal by slowly moving the azimuth and elevation of the dish. Adjusting the incoming signal to the suitable level by pressing the "ATT" keys. Continue to move the dish until you have the highest possible meter reading and the highest possible buzzer pitch
5. Remove the jumper cable and digital satfinder and reconnect the LNB/LNBF to your receiver
