Description
PORTABLE FUME EXTRACTION SYSTEM

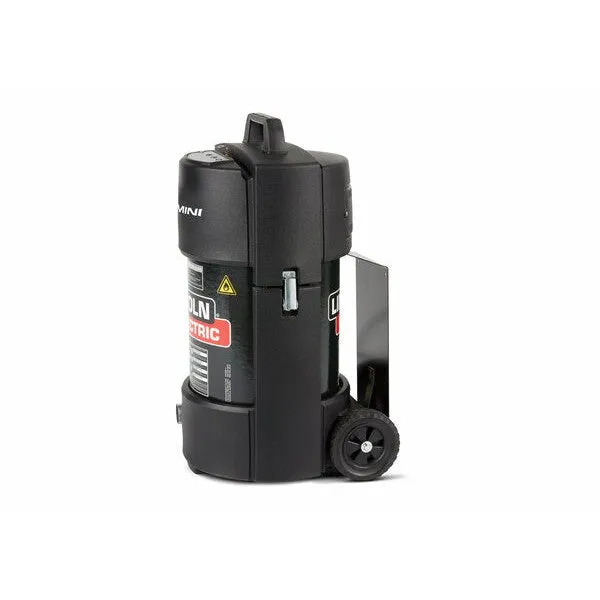

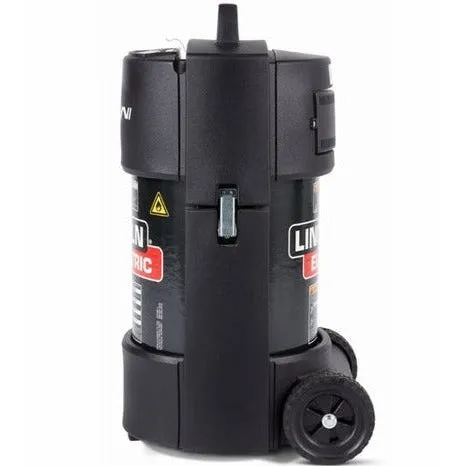

The X-Tractor® Mini is a light weight; high vacuum portable fume extraction system designed to filter particulate and remove welding fumes. Intended for light duty welding applications; the quiet operation and portability of the Miniflex make this system an ideal solution for confined and hard to reach spaces.
- Create a safer work environment for welders/shop employees
- Effectively remove weld fume particulate with large surface area coverage and 99.7% filter unit efficiency
- Light weight; durable construction and portable design weighing only 40 lb
- Compact size for use anywhere you go
- Provides 95-108 cubic feet per minute of flow using a powerful 2.4 HP motor
Features
- Current Sensor - Automatic start/stop capability by sensing welding current
- Multiple Extraction Settings - Select extraction CFM setting based on environmental conditions
- Quiet Operation - Operates at a sound level of <80dB(A)
- Carbon Brush System - Monitors and alerts brush consumption based on 750 run hours
- System Airflow Check - Easily observe extraction performance
- Input Power - Runs on 120-volt, single-phase input power.
- 3-Year Warranty
Applications
- Industrial Applications
- Contractors
- Maintenance and Repair Operations
- Intermittent welding
Included with Product

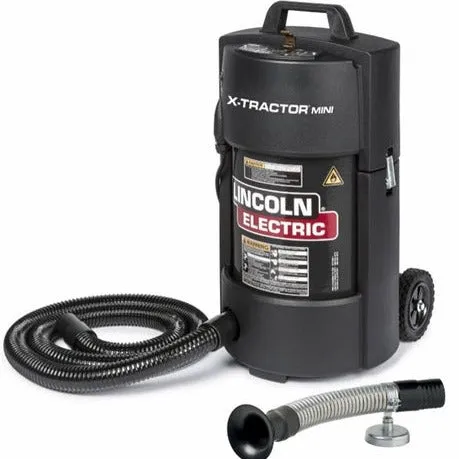

- X-Tractor® Mini fume extractor
- Extraction Hose with adapter - 8 ft. (2.4 mm) length; 1-3/4 in. (45 mm) I.D.

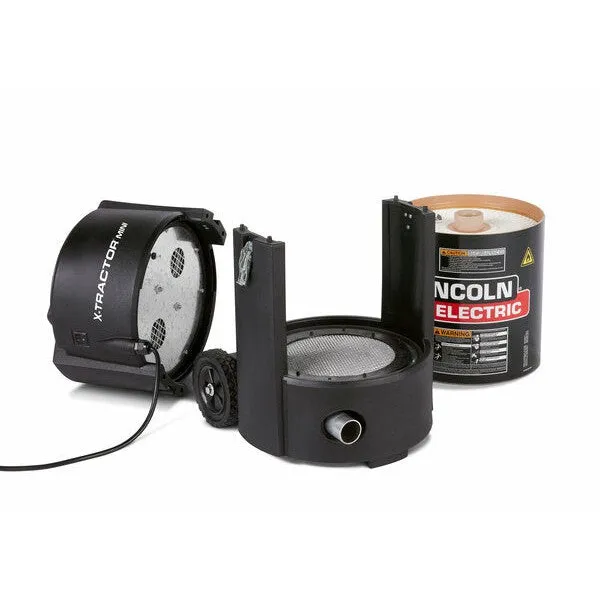

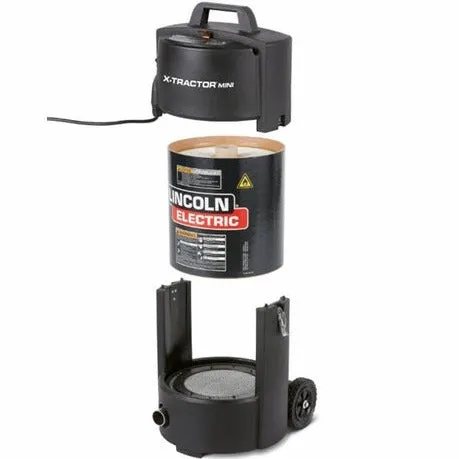

- LongLife-H main filter HEPA filter
- Carbon Brushes (set of 2) and seals for motor
- EN 20 Extraction Nozzle with Magnetic Base
- Filter One-Pak® X-Tractor® Mini® KP2390-5
- Pre-Filter KP2390-3
- Filter, HEPA, KP2390-4
- Filter, LongLife-H KP2390-1
