- Most modern lens technology for a glare-free, homogenous illumination and high energy efficiency
- Personalization of light functions and remote control of several lanterns simultaneously thanks to the included remote control and Ledlenser Connect App
- Particularly pleasant warm white light color and additional red light mode
- Magnetic Charge System and power bank function
- Rubber hook for hanging the light, integrated magnet for mounting it on metal surfaces, and a removable stand with an extra built-in metal
- hook that can be flipped out to provide more light mounting options

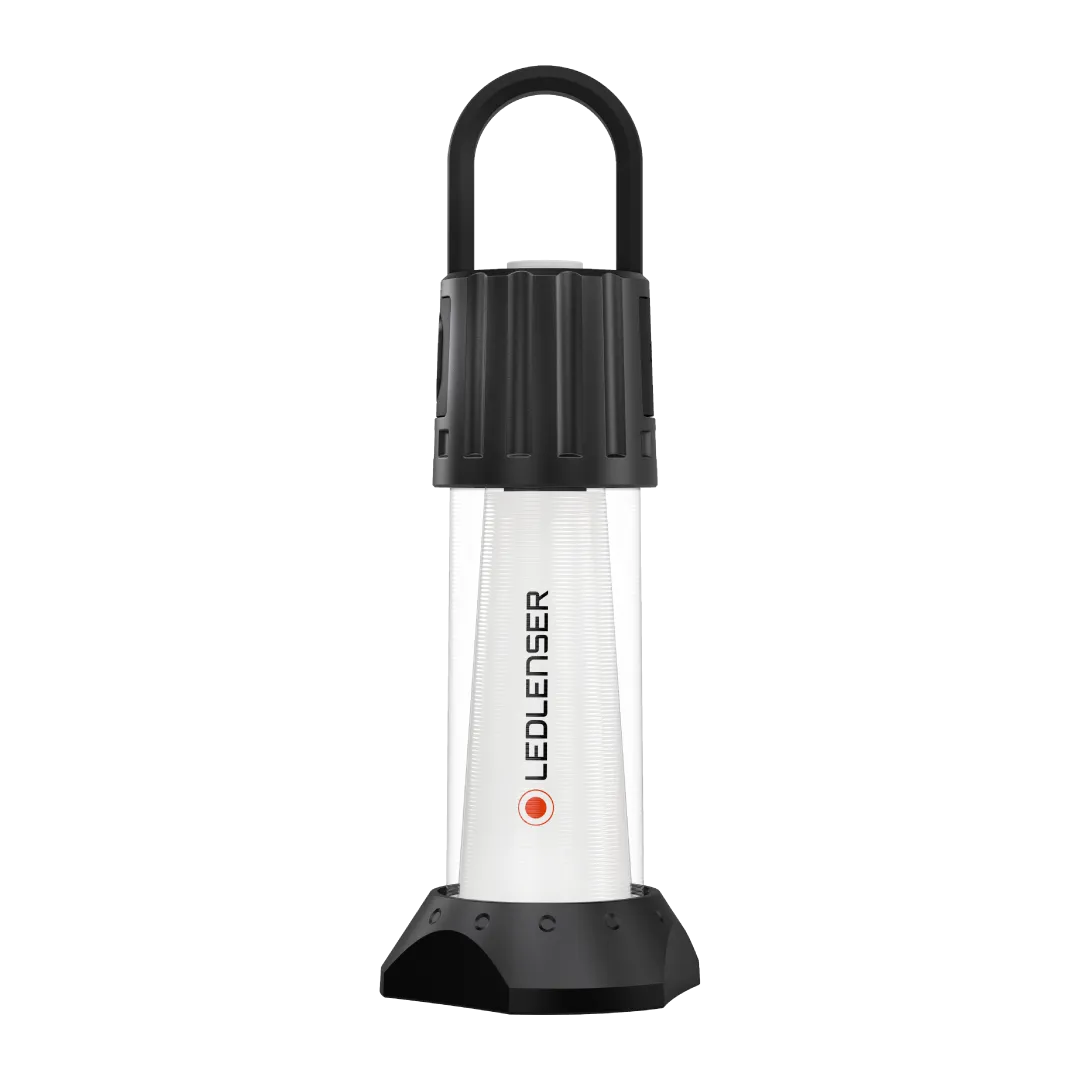

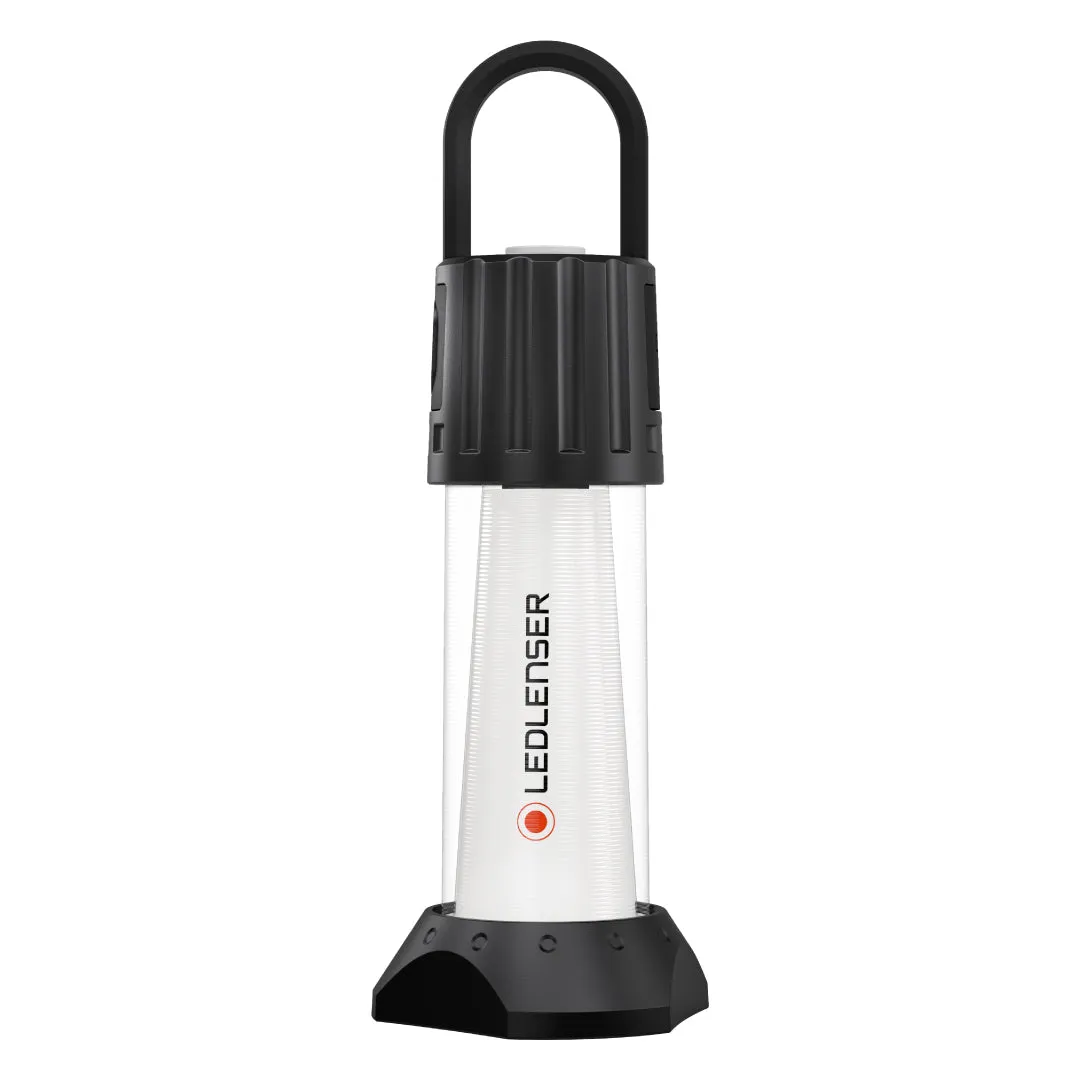

Connect WL
Micro Prism Technology – patented lens technology for glare free light and high energy efficiency

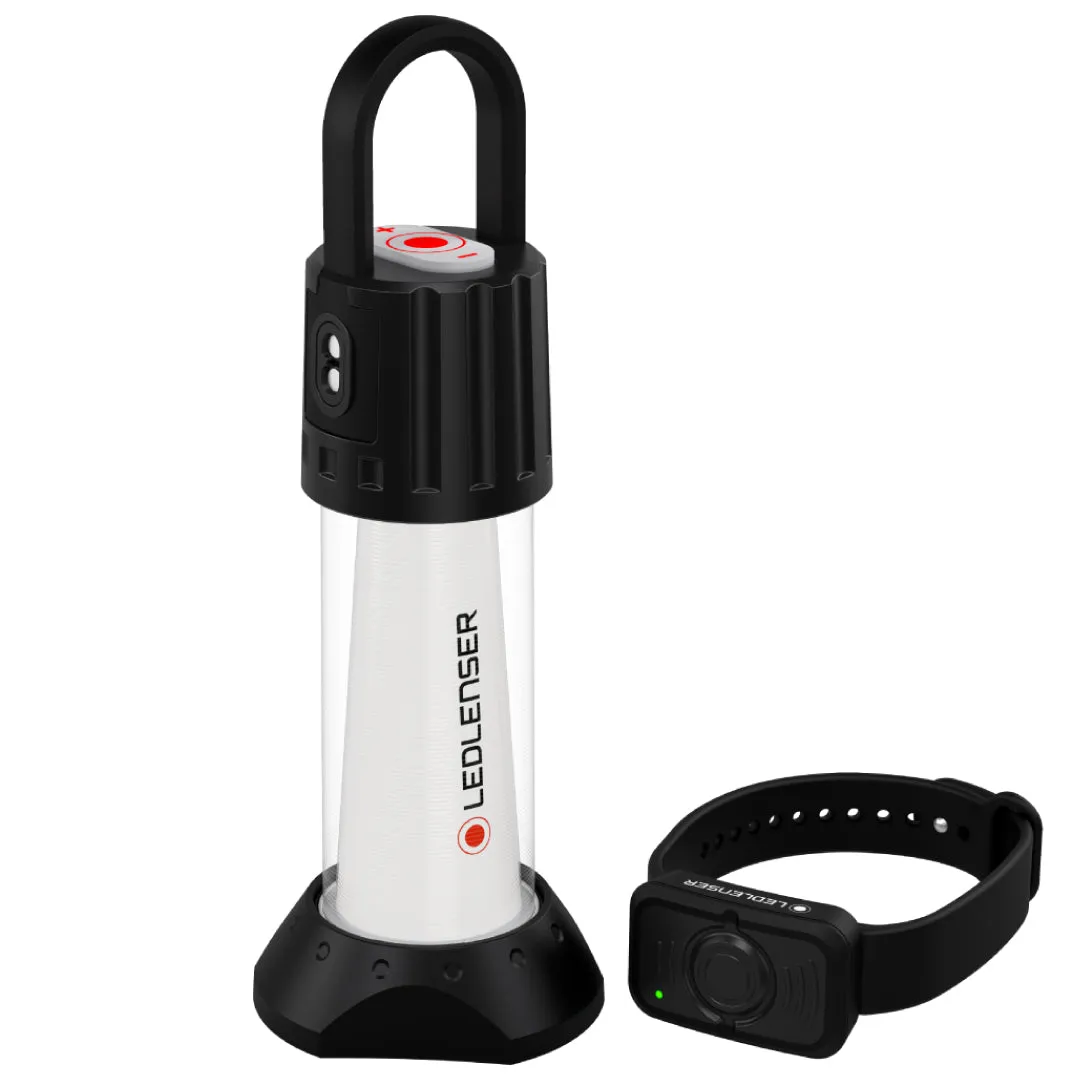

Ledlenser Connect App and wireless Bluetooth® remote control enable personalization and remote control of the light functions
Infinitely dimmable via three-way switch
Powerbank function with USB connection for charging electronic devices
Red light to maintain night vision ability

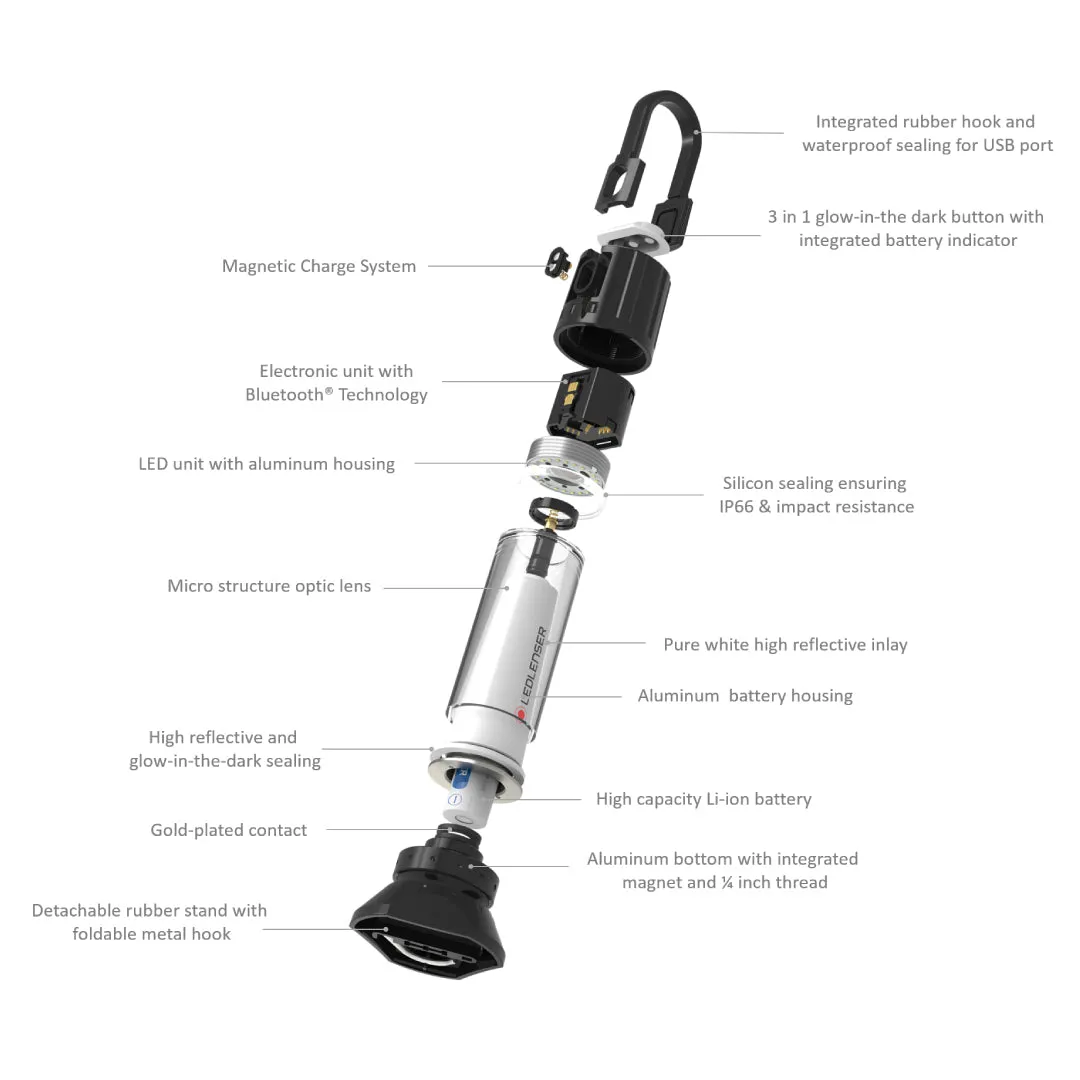

Rubber hook for hanging the light, integrated magnet for mounting it on metal surfaces, and a removable stand with a built-in metal hook that can be flipped out to provide more light mounting options

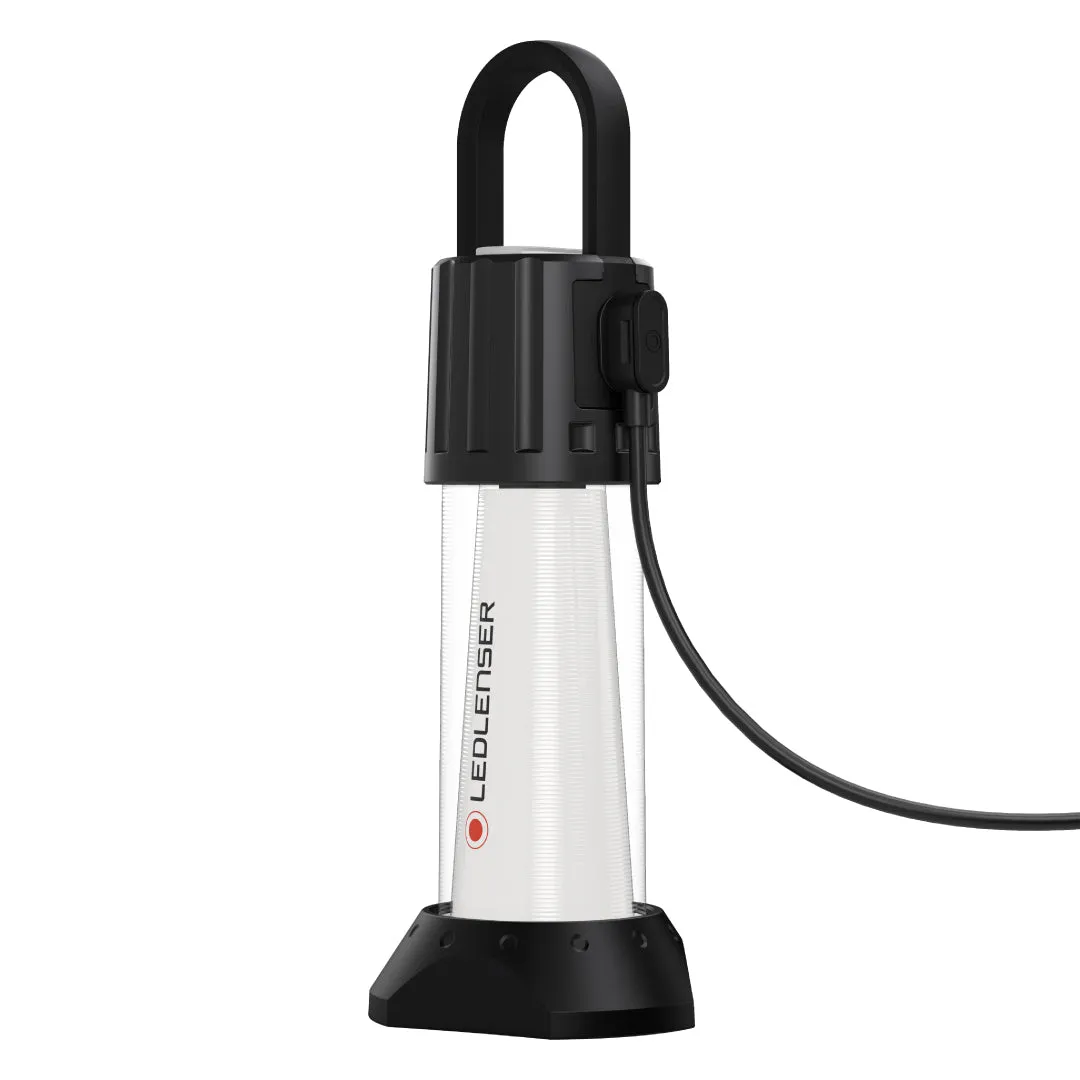

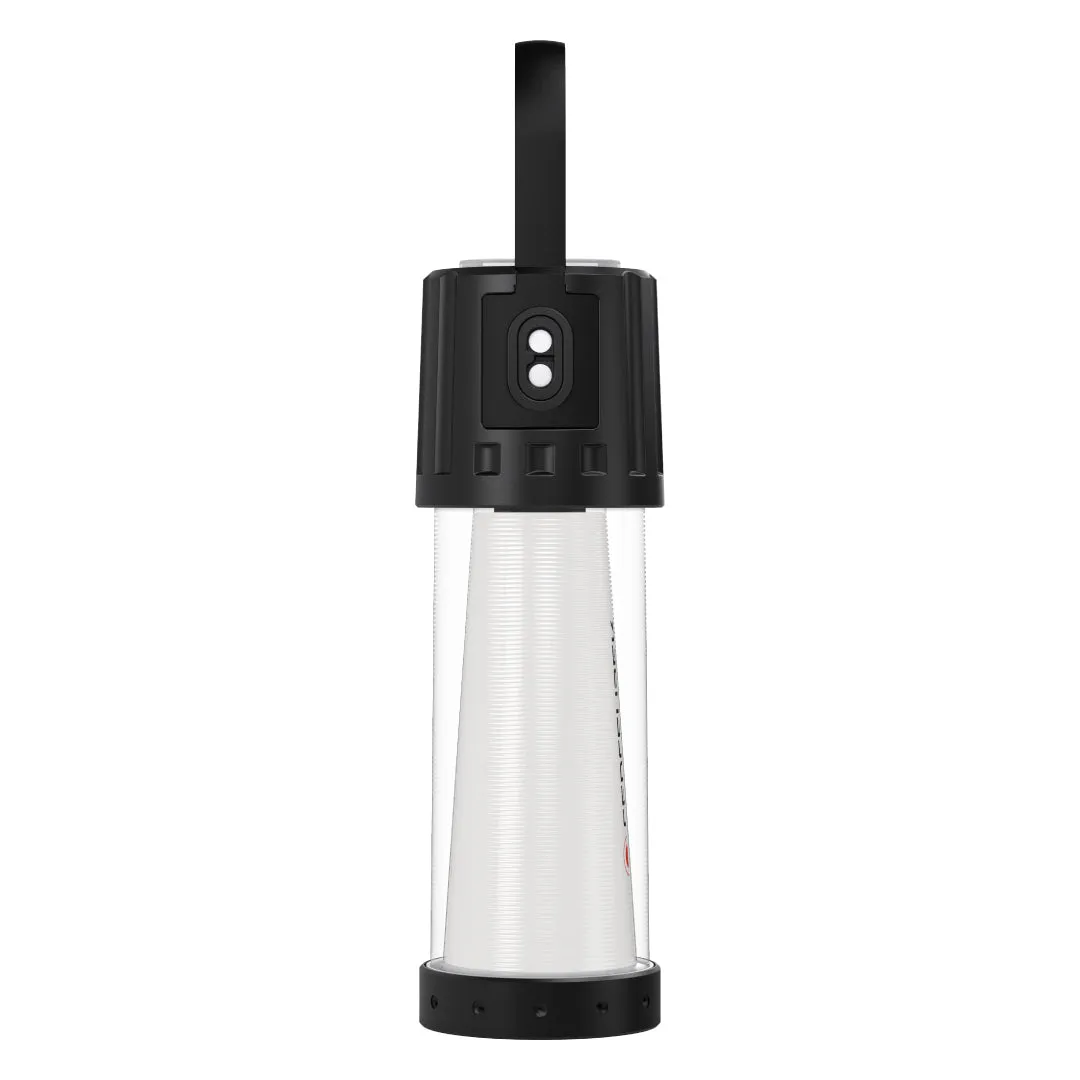

Convenient and safe charging of the batteries thanks to the Magnetic Charge System
Integrated battery and charge status display
PACKAGING INFORMATION | |
|---|---|
Type of packaging | Window Box |
Scope of delivery | 1 set of rechargeable batteries, Magnetic charging cable, Remote switch, Transport bag, stand |
Item No. | 502201 |
Dimensions W x H x D [cm] | 8.6 x 20 x 6.5 |
Gross weight [g] | 490 |
TECHNICAL DATA | |
|---|---|
Length defocused [mm] | 178 |
Head diameter [mm] | 45 |
Tube diameter [mm] | 39 |
Weight incl. batteries [g] | 260 |
Weight without batteries [g] | 211 |
Focus function | No |
Head material | PC |
Tube material | PC |
Optic | Reflector lense (PMMA) |
Cartridge | No |
POWER SUPPLY | |
|---|---|
Power source type | Rechargeable battery |
Battery quantity | 1 |
Battery type | Li-ion |
Battery replaceable | Yes |
Total battery voltage [V] | 3.6 |
Total battery capacity [mAh] | 3000 |
Total battery energy [Wh] | 10.89 |
Rechargeable | Yes |
Charging time [min] | 300 |
Energy modes | Energy Saving |
Energy status indicator | Battery Indicator, Charge Indicator, Low Battery Warning |
FURTHER SPECIFICATIONS | |
|---|---|
IP class | IP66 |
Drop test (drop height) [m] | 1.5 |
Working temperature range [°C] | -20 to 40 |
LIGHT FUNCTIONS | |
|---|---|
Boost, Power, Mid Power, Low Power, Blink, Pulse, S.O.S., Strobe, Position | |
LIGHT SOURCE | |
|---|---|
Amount LEDs | 18 |
LED type | Power LED |
Color | White |
Color temperature [K] | 2500 to 3000 |
Color rendering index (CRI) | 80 |
LIGHT VALUES | ||||
|---|---|---|---|---|
Energy Saving | Boost | Power | Mid Power | Low Power |
Light output [lm] | 750 | 550 | 100 | 5 |
Run time [h] | 3.5 | 12 | 180 | |
SWITCH | |
|---|---|
Front Switch | |
FEATURES | |
|---|---|
Bluetooth®, Dimmable , Transportation lock , Red Light, Memory Function | |
TECHNOLOGIES | |
|---|---|
Smart Light Technology, Temperature Control System, Power Bank Function, Magnetic Charge System, Micro Prism Technology | |
