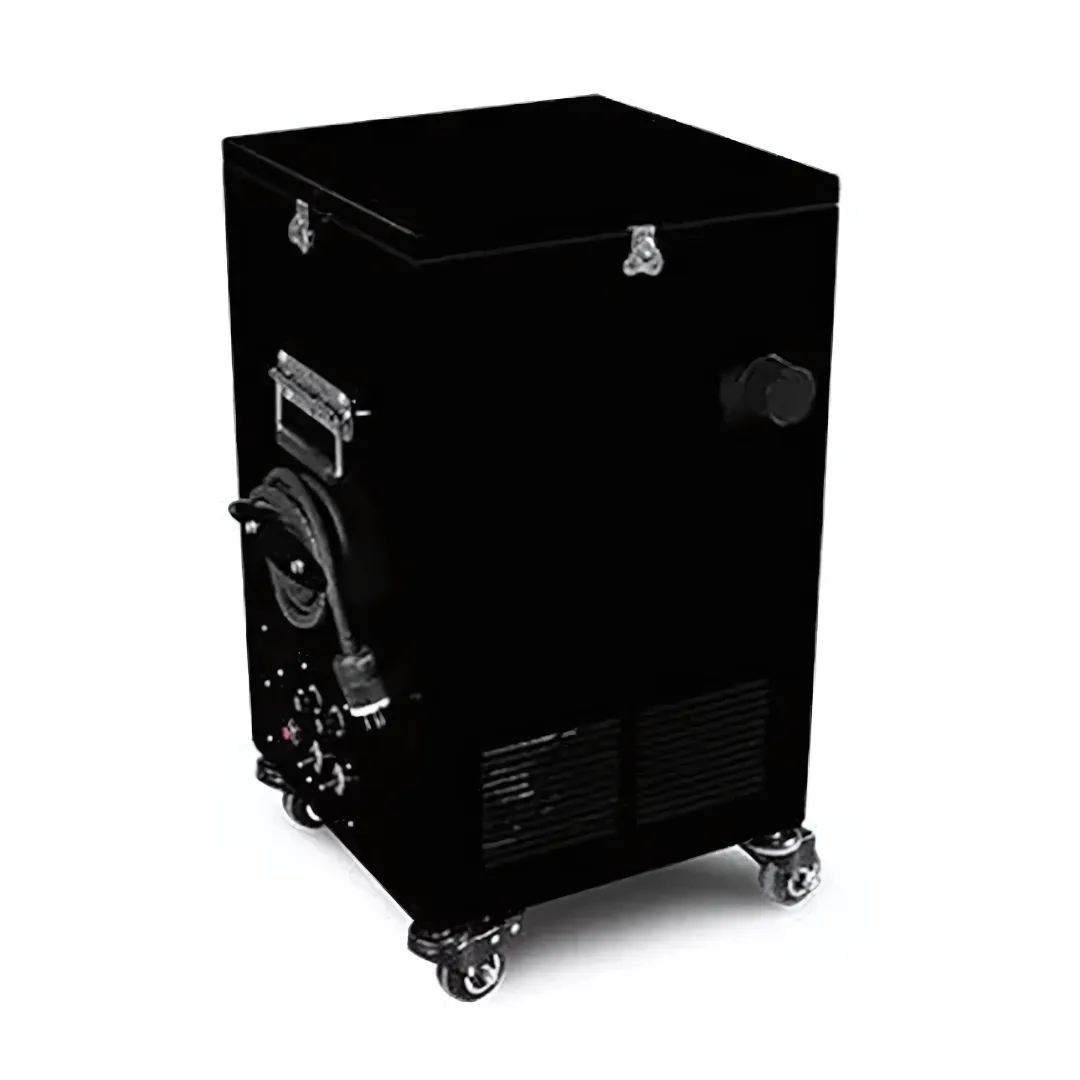

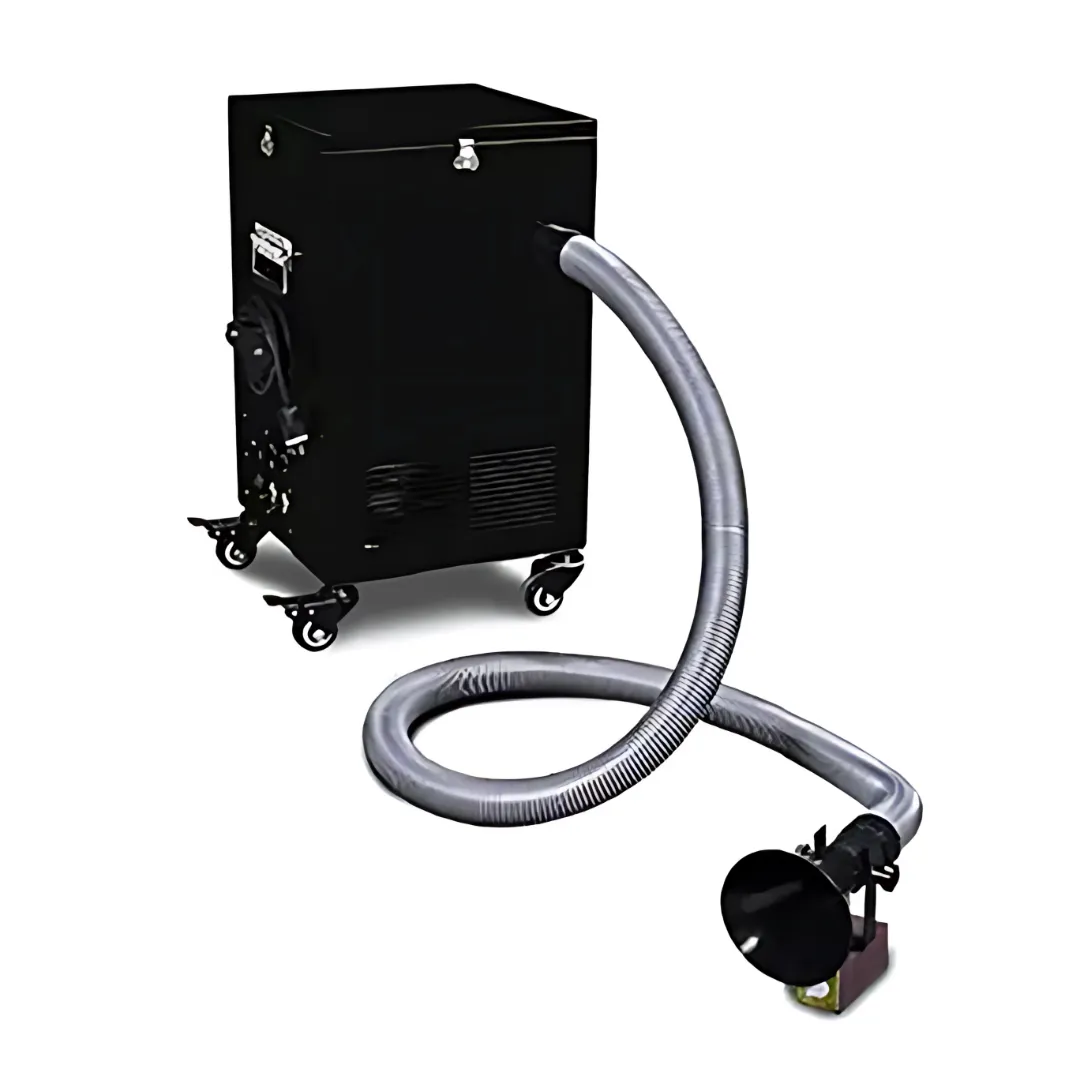

CleanVac Portable Welding Fume Extractor
The CleanVac Portable Fume Extractor is a mobile unit designed to capture and clean light to medium-duty welding fumes. It may also be used to collect non-flammable sanding or grinding dust.
Featuring two 0.75 kW (1.0 HP) motors that can be controlled independently, each motor is fitted with its own filter cartridge to maximize service life and optimize air flow.
Ideal for use with small workstations, or to supplement existing filtration systems.
Product Features
- Designed for light-medium duty welding
- Attaches quickly to GMAW (MIG) fume extraction guns
- Exceptionally portable design
- Dual nanofiber MERV 15 filter cartridges
- Includes magnetic nozzle base for secure nozzle placement
- Service indicator for easy maintenance
| Product Name | CleanVac |
| Input Voltage | 120V, 60Hz |
| Motor Size | 2x 0.75 HP (1.5 HP Total) |
| Filter | 2x 2.5 m² Nanofiber MERV 15 |
| Air Flow (CFM) | 105 / 210 |
| Hose Size | 2" Dia., 9' Length, Includes Mag. Base |
| Net Weight | 60 lb. (27 kg) |
| Dimensions (WxHxL) | 15.7" x 27.5" x 18.1" |
| Input Cord Length | 9 ft. |
| Replacement Filter | 2x 10202-701 Filter |
Applications
- Welding
- Soldering
- Grinding1
- Sanding1
1For non-combustible, non-explosive dust only
