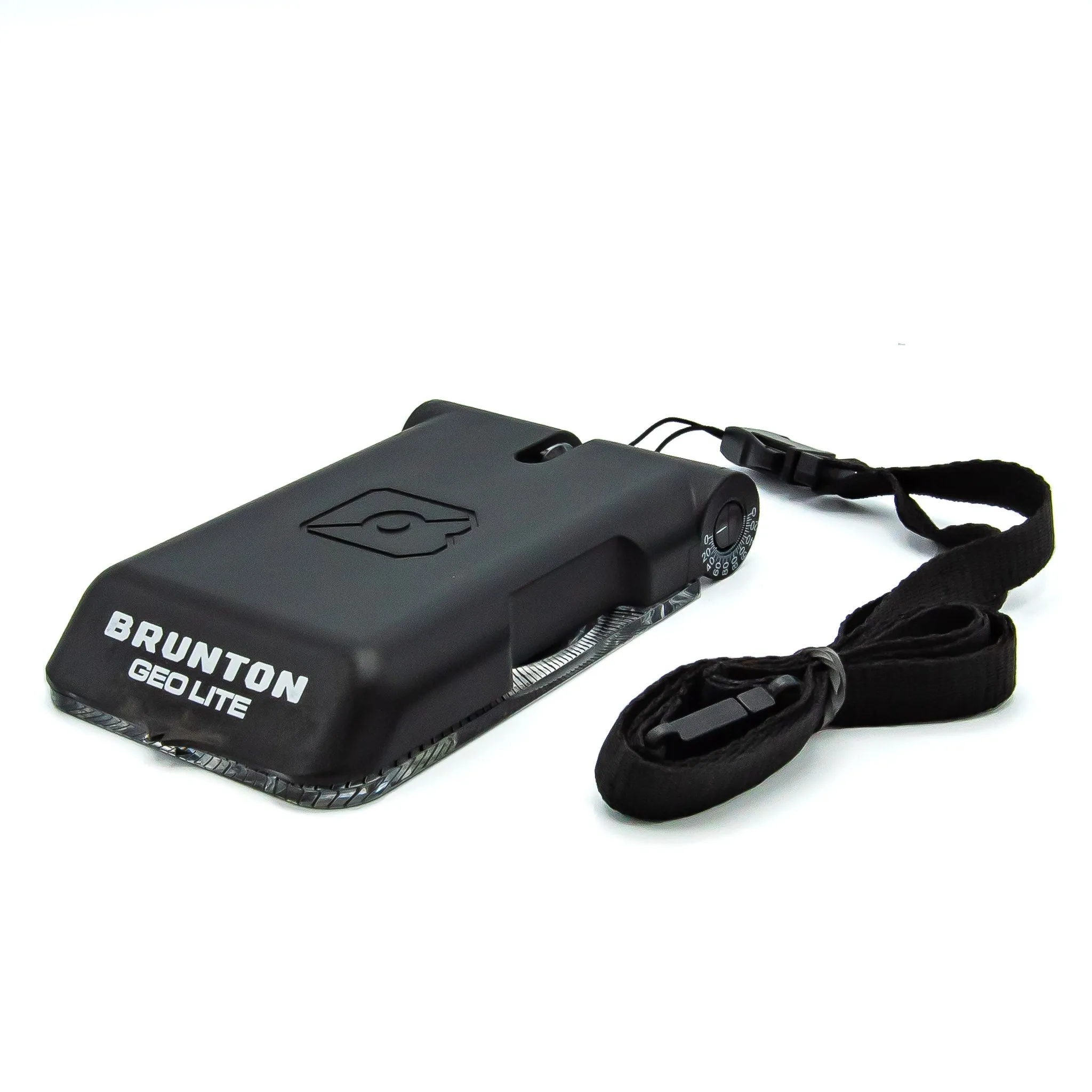

Brunton Geo Lite Transit Compass

Lightweight Precision for Field Geologists

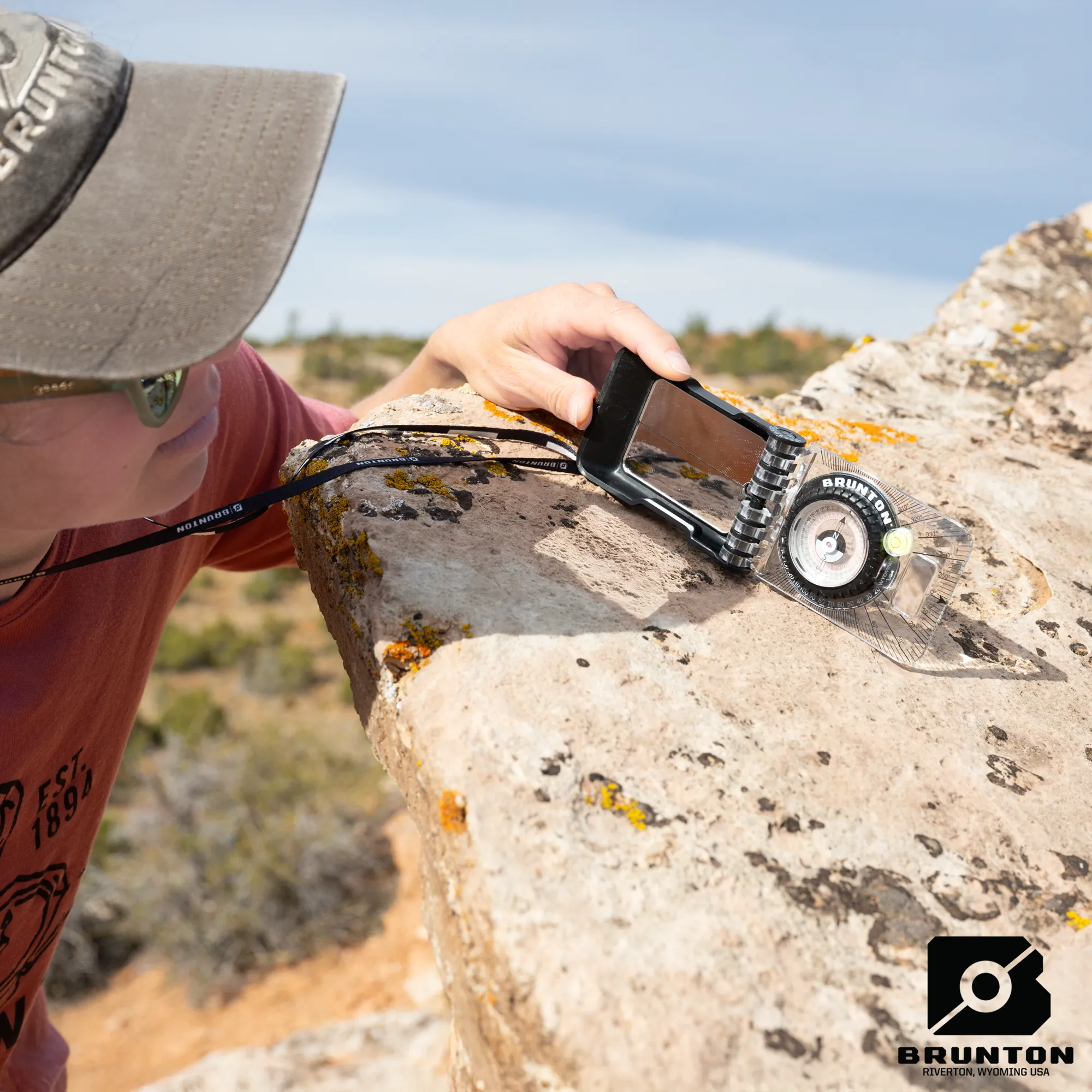

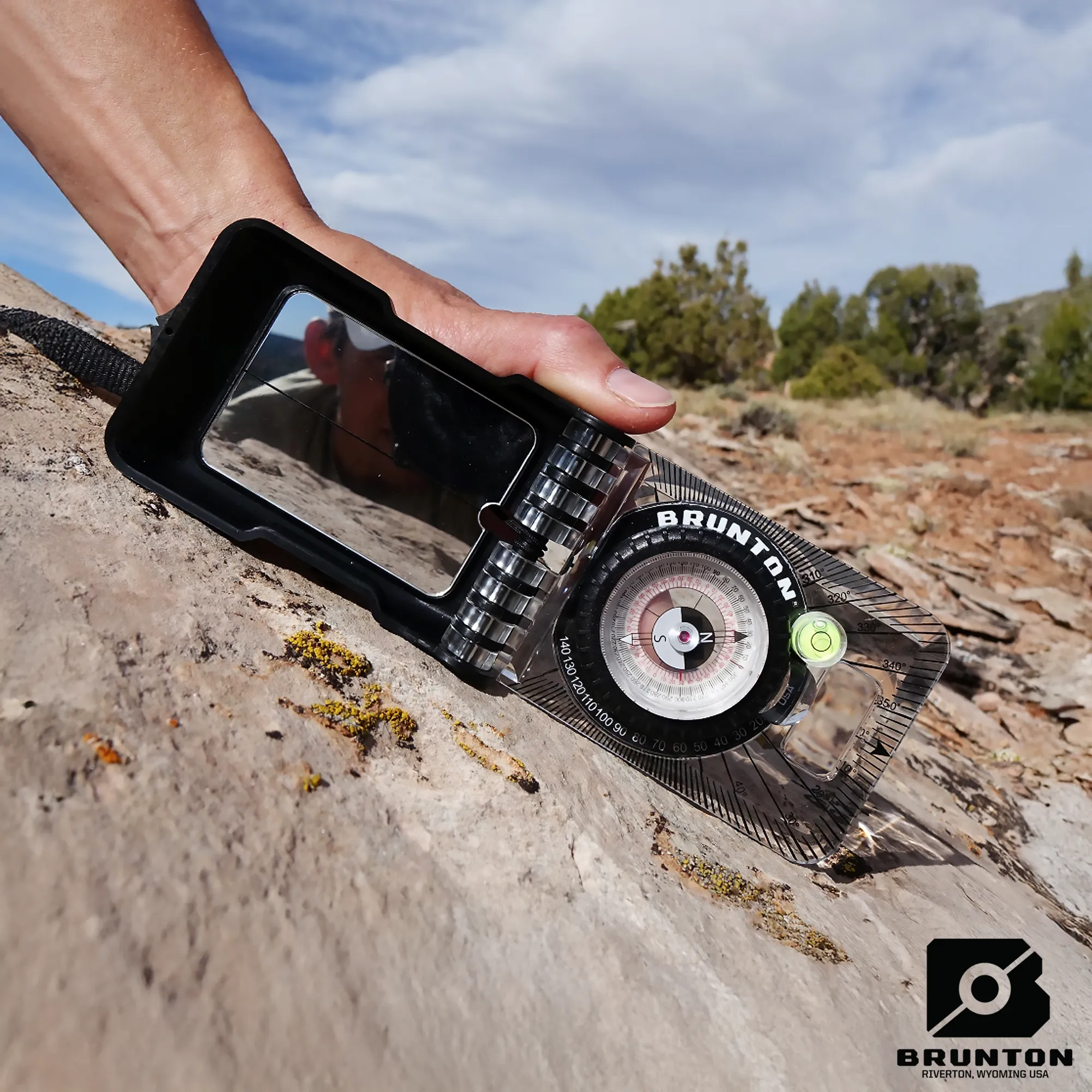

The Brunton Geo Lite Transit Compass is a lightweight, field-ready tool that combines the functionality of a traditional transit with the convenience of a baseplate compass. Designed specifically for geologists, students, and field researchers, the Geo Lite enables precise strike and dip measurements, making it an essential tool for geological mapping and structural analysis.

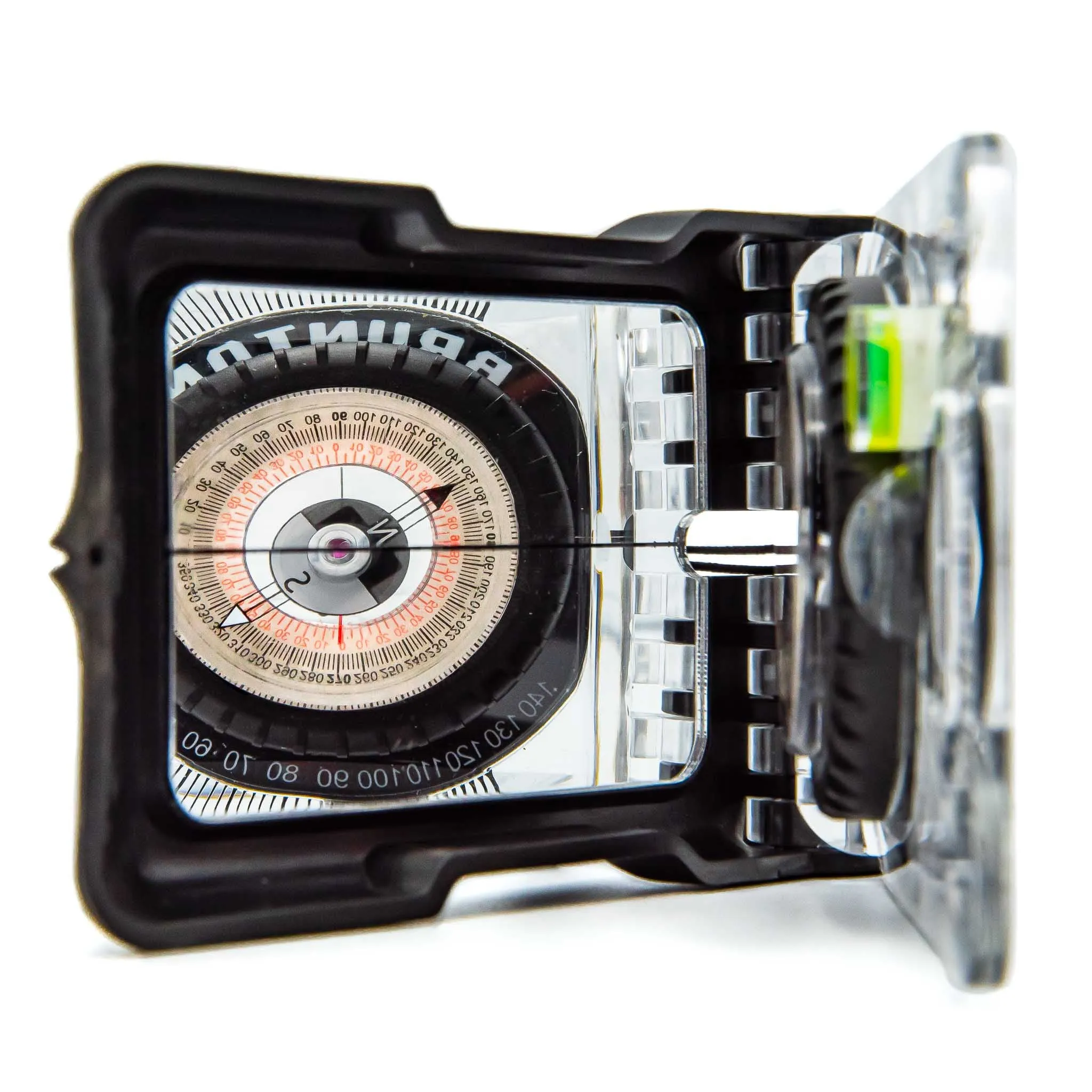

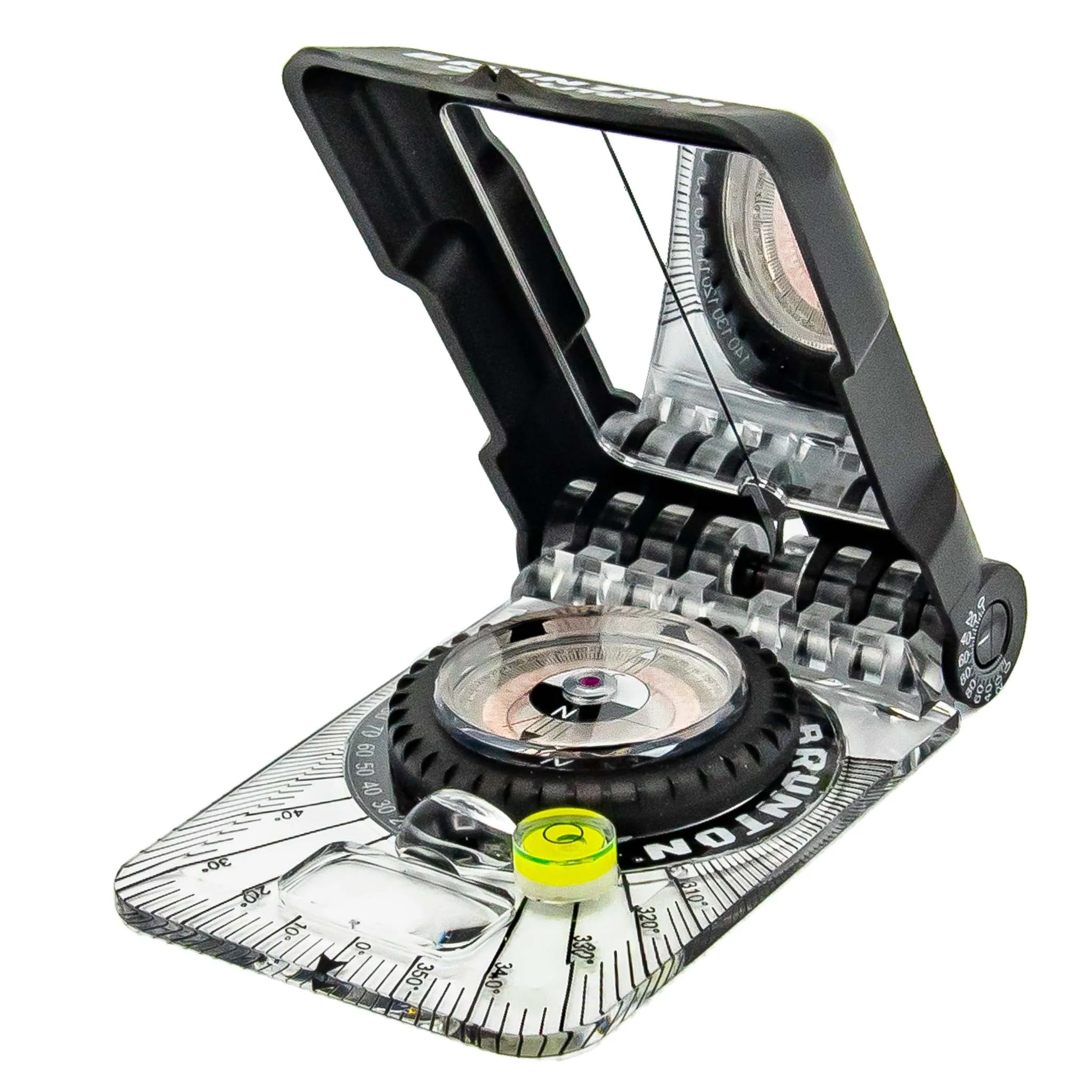

Engineered for accuracy and ease of use, this mirrored baseplate compass allows users to take measurements using both strike & dip and dip & dip direction methods. It features two clinometers, an integrated protractor, and a bubble level for reliable field readings. The Brunton EverNorth Magnet provides long-term durability and resistance to demagnetisation, ensuring consistent performance in any field condition.

Proudly made in the USA in Riverton, Wyoming, the Geo Lite Transit Compass is ideal for students, professionals, and educators who require a dependable, lightweight geological compass.

Key Features & Benefits:

• Transit-Style Baseplate Compass: Combines classic baseplate design with transit functionality for versatile geological applications.

• Dual Clinometer System:

  • Fixed Plumb-Style Clinometer – Unaffected by declination adjustment.

  • Hinge Clinometer – Enables dip/dip azimuth measurements.

• Integrated Protractor: Essential for accurate data plotting on field maps.

• High-Precision Azimuth Readings:

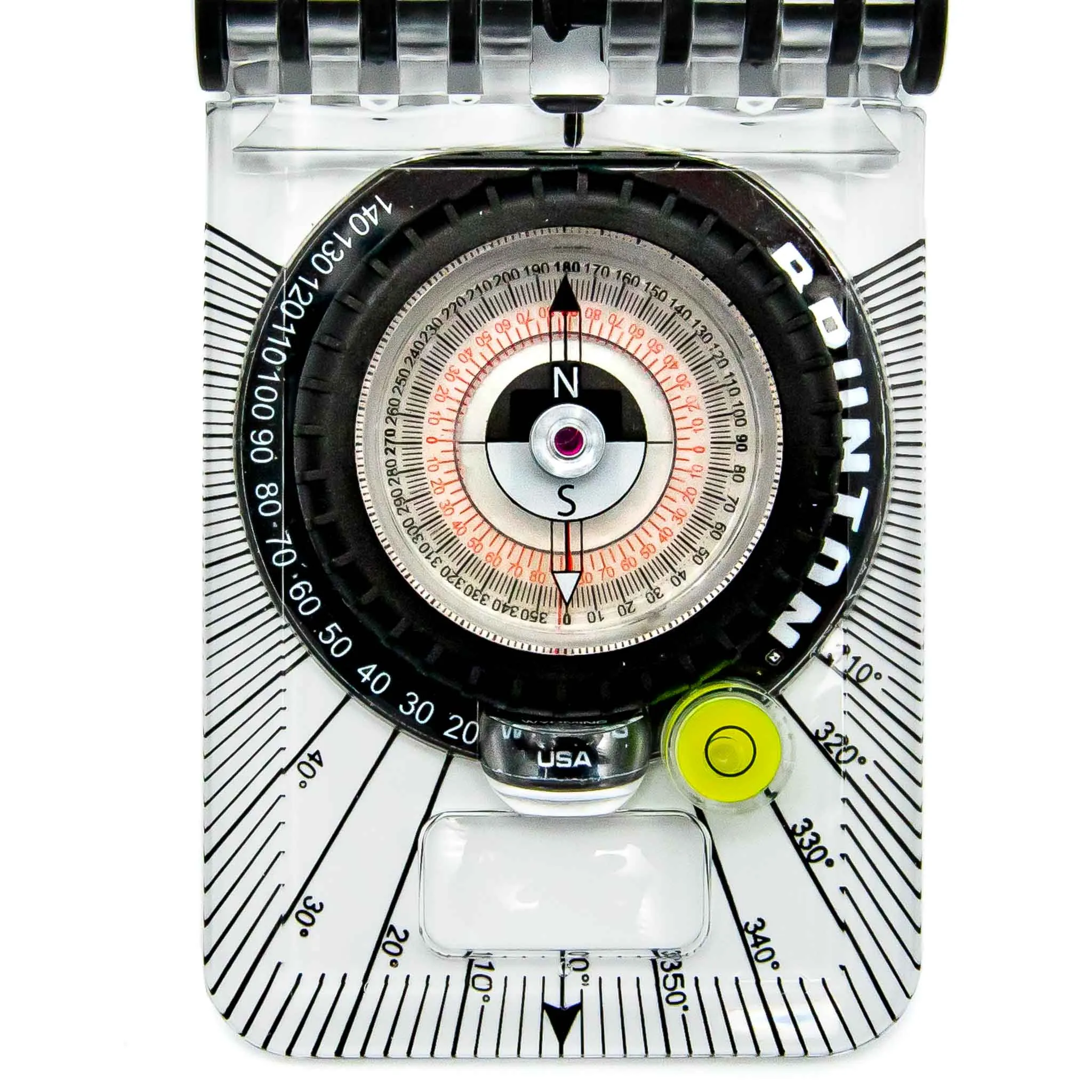

  • 2° graduations with ±1° accuracy for precise bearings.

• Clinometer Accuracy:

  • 5° graduations with ±2.5° accuracy for reliable dip measurements.

• Brunton EverNorth Magnet: Resists demagnetization over time, ensuring long-lasting performance.

• Bubble Level: Enhances accuracy when measuring strike and dip.

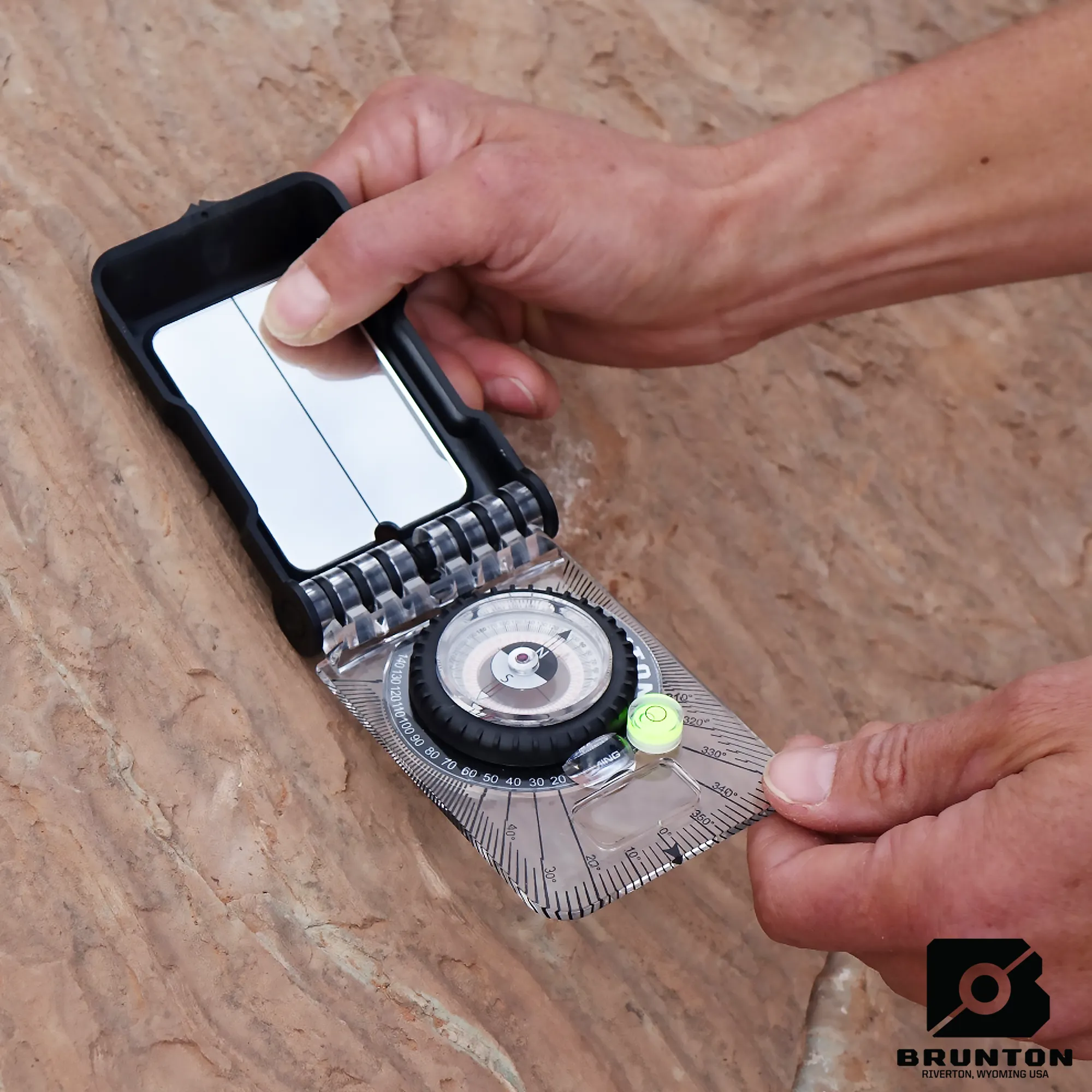

• Flat Bottom Design: Allows for low-angle strike and dip measurements.

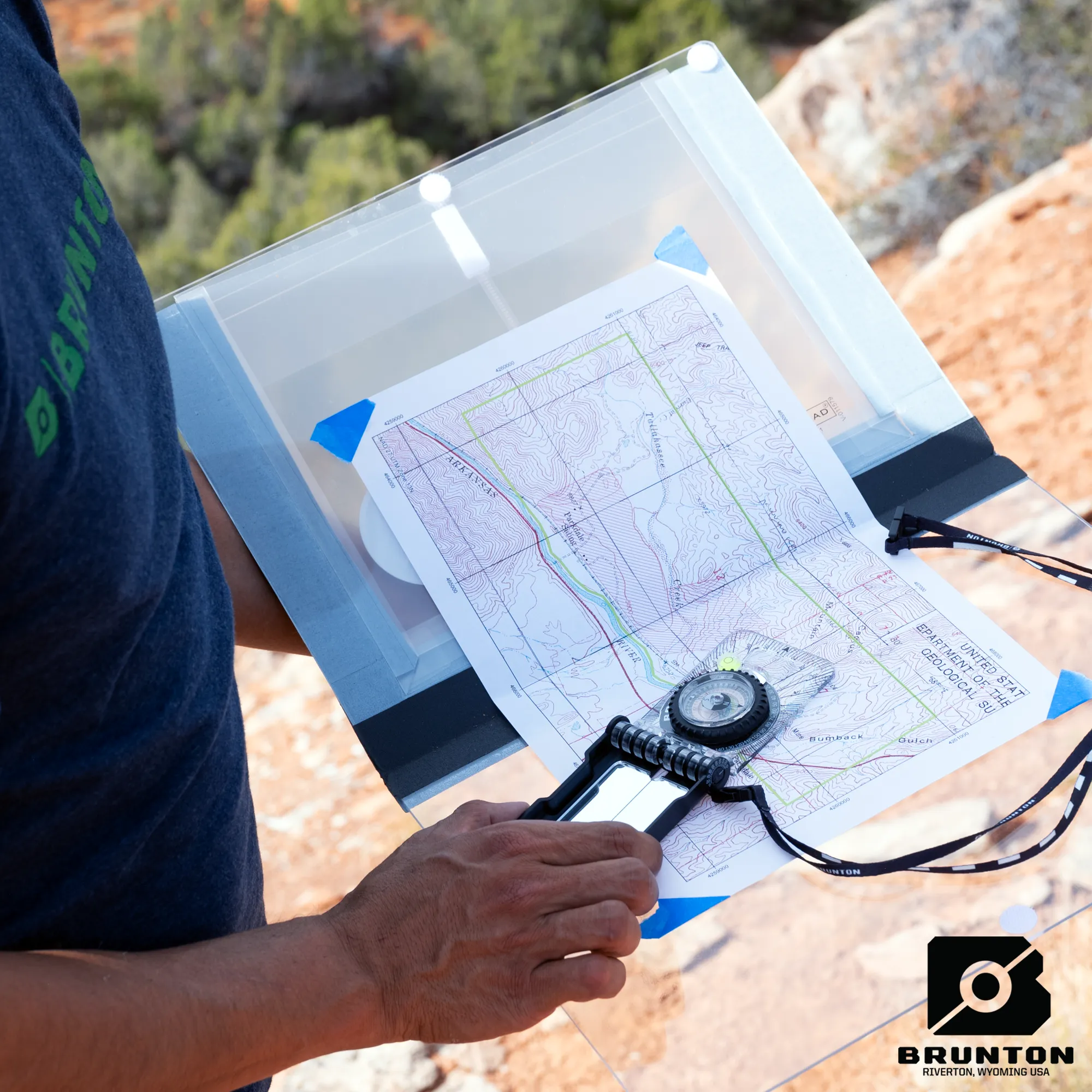

• Map Magnifier: Aids in reading fine details on geological maps.

• Tool-Free Declination Adjustment: Quick and easy alignment of magnetic north to true north.

• Romer Scales: Seamlessly integrates with handheld GPS devices.

• Durable & Sustainable Construction:

  • Hot-stamped baseplate for improved durability.

  • Recycled glass-filled PA lid for increased strength.

  • 100% FSC-certified and recyclable packaging.

• Custom Pad Printing Available: Personalise the Geo Lite Transit Compass with a company, university, or organisation logo.

• Comes with a Detachable Safety Lanyard for added convenience.

Technical Specifications:

• Dimensions (Closed): 10.2 x 6.4 x 1.8 cm

• Weight: 83 g

• Azimuth Resolution: 2° graduations with ±1° accuracy

• Hinge Clinometer Resolution: 5° graduations with ±2.5° accuracy

• Internal Clinometer Resolution: 5° graduations with ±2.5° accuracy

• Declination Adjustment: ±180°

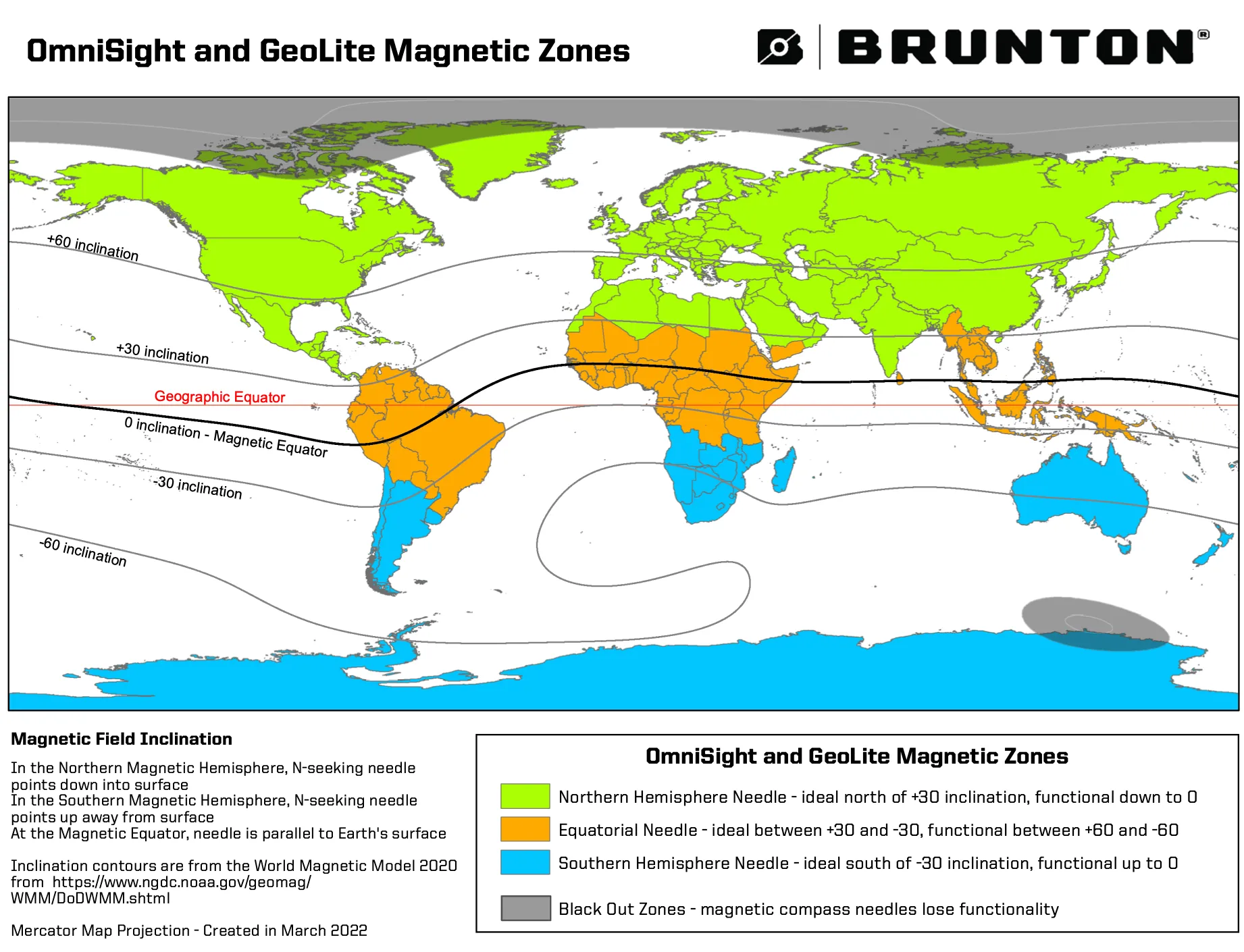

Needle Balancing

Bruton Geo Lite Compasses are balanced for one of three regions, please refer to the following map to assist with selecting the correct compass for your locatin.

Why Choose the Brunton Geo Lite Transit Compass?

For geologists, students, and field researchers, the Geo Lite delivers precise, reliable, and lightweight geological measurements in the field. Whether conducting structural mapping, fault analysis, or educational training, this compact and durable transit compass provides the functionality of a full-size transit in a streamlined design.

Explore the field with confidence using the Brunton Geo Lite Transit Compass – precision you can rely on.
