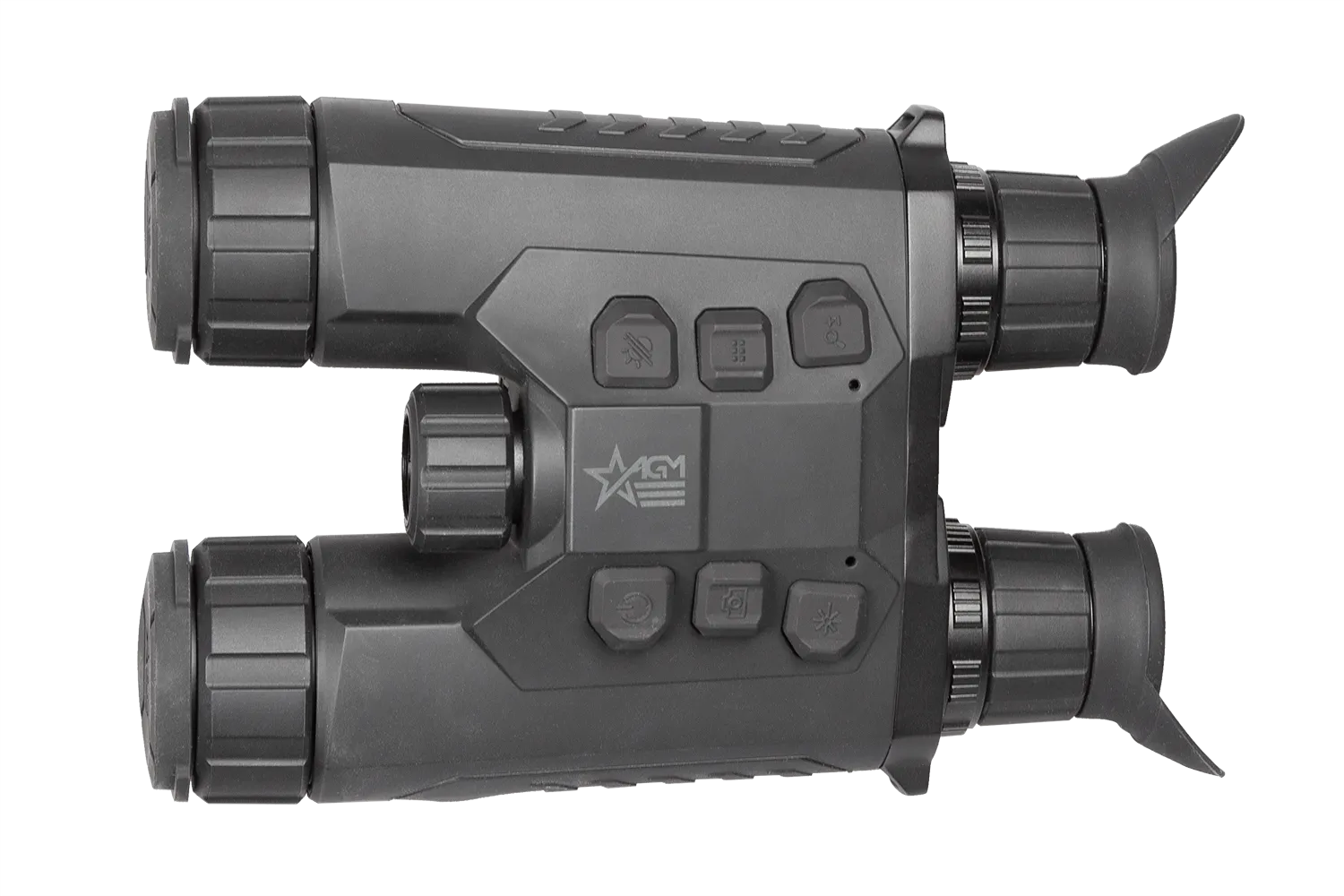

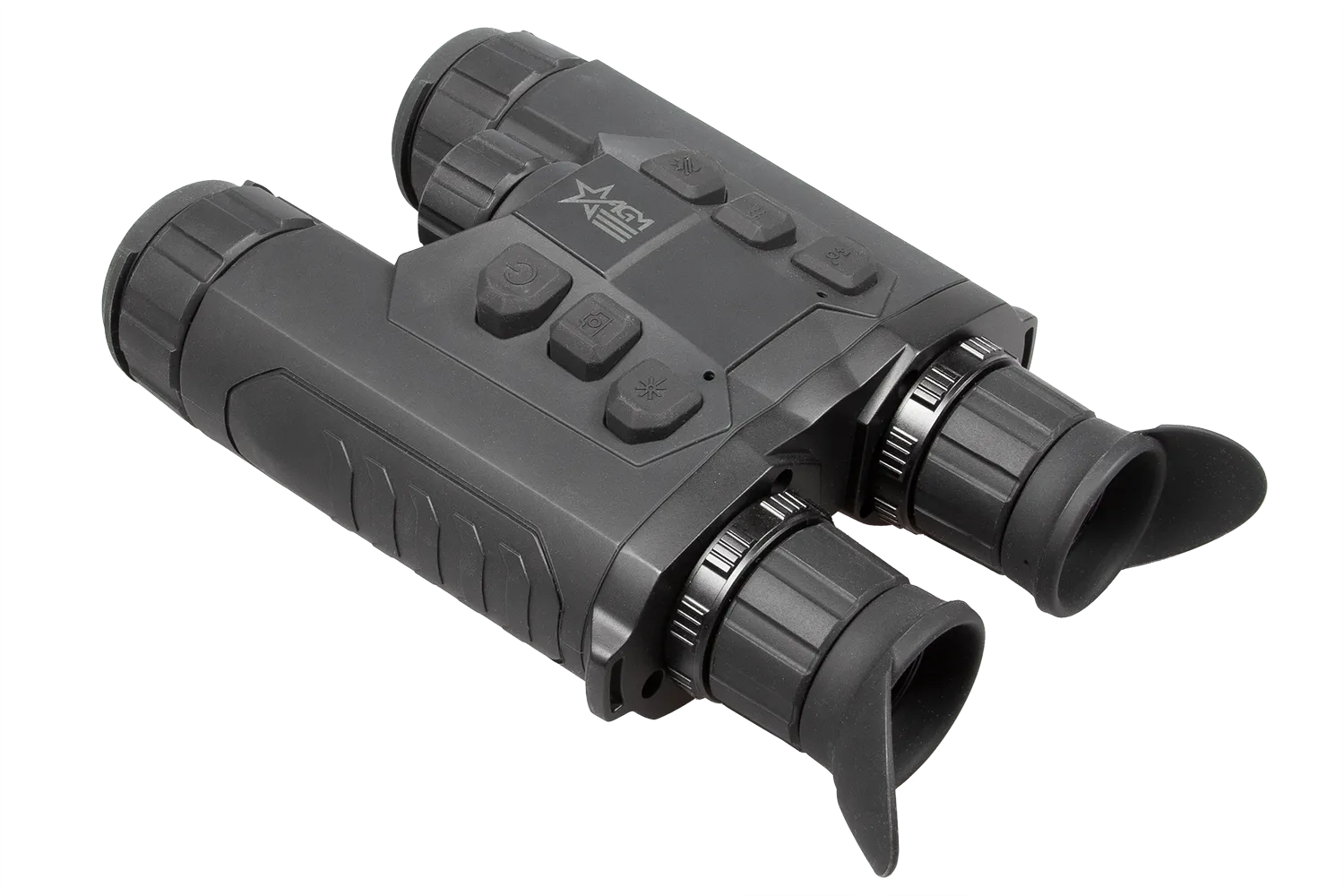

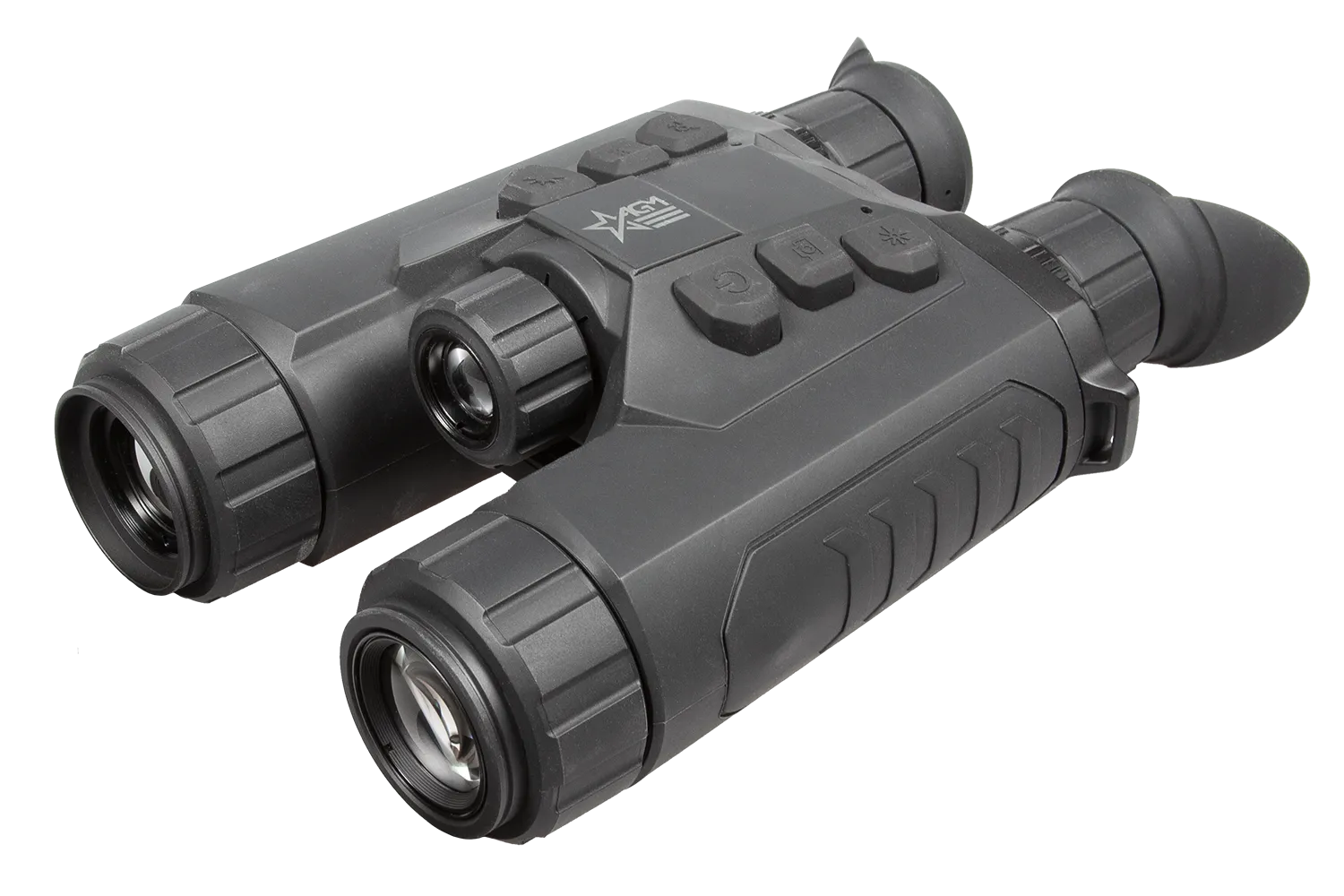

AGM ObservIR LRF Thermal & Digital Binocular
The ObservIR LRF Thermal & Digital Day/Night Vision binoculars, from AGM, boast the most cutting-edge and feature-rich technology in the industry. The main thermal viewing channel, equipped with a highly-sensitive 12 micron detector, is the heart of these binoculars. But that's not all - the ObservIR LRF also includes a digital day/night channel, perfect for identifying targets detected by the thermal channel. With a built-in 1,000m laser rangefinder, as well as 64GB of internal memory and Wi-Fi compatibility, these binoculars are truly a step above the rest. The ObservIR LRF monoculars also come with a variety of software improvements and features commonly found in AGM's thermal product lineup, such as a high-sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, multiple viewing modes, various color palettes.
Features
- Dual-spectrum thermal and digital day/night system
- 12μm high-sensitivity thermal sensor
- 256x192 thermal resolution
- 1x, 2x, 4x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 3840×2160 optical resolution
- Built-in IR illuminator
- Eye-safe 1,000 m laser rangefinder
- 1920×1080 resolution, 0.49-inch OLED display
- Digital Magnetic Compass
- Built-in GPS module
- Video/audio recording and snapshot capture
- Built-in 64 GB EMMC storage
- Wi-Fi hotspot
- Standby mode
- 8-hour continuous operation on a single charge
- Auto screen-off function to saving energy
- External power supply capability
- Rugged housing with rubber over molding
- Waterproof and dustproof
Specifications
| Feature | Specification |
|---|---|
| Thermal Detector | 12μm VOx Uncooled Focal Plane Array |
| Thermal Resolution | 256 × 192 |
| Refresh Rate | 50 Hz |
| NETD | Less than 35 mK (25°C, F#=1.0) |
| Thermal Channel Lens System | 25 mm; F1.0 |
| Thermal Channel Field of View | 7.0° × 5.3° |
| Thermal Channel Magnification | 4.5x – 18x |
| Digital Zoom | 1x, 2x, 4x |
| Diopter Adjustment | -5 to 3 |
| Detection Range (6’ object) | 1,200 m |
| Monitor | 1920×1080, 0.49 inch, OLED, 50 FPS |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Scene Mode | Jungle, Recognition |
| Optical Digital Sensor | 3840×2160, 1/88” Progressive Scan CMOS |
| Optical Channel Magnification | 5.5x – 22x |
| Optical Channel Field of View | 6.9° × 4.1° |
| Optical Module Lens System | 60 mm, F2.2 |
| Display Mode | Day, Night, Auto |
| Distance Measurement | Laser Rangefinder: up to 1,000 m, ±1 m accuracy |
| Laser Wavelength | 905 nm |
| Laser Safety Class | Class 1 |
| Infrared Light | Built-in 850nm Smart IR. Power and beam angle adjustment. |
| Viewing Range at Night | 400 m |
| Wi-Fi Hotspot | Yes |
| Sleep Mode | Yes |
| Built-in Storage | 64 GB EMMC |
| Video/Audio Recording | Yes / Yes |
| Image Capture | Yes |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Battery Type | Two 18650 rechargeable batteries (removable) |
| Battery Life | Up to 8 hours continuous running (@25°C, WiFi, IR, and LRF off) |
| Power | 5 VDC/2 A, USB Type-C interface. Supports external power supply. |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Protection Level | IP67 (Waterproof) |
| Dimensions | 221×142×71 mm (8.7×5.6×2.8 in) |
| Weight (w/o batteries) | 0.89 kg (1.96 lb) |
Specifications are subject to change without notice.
Images are for illustration purposes only.
