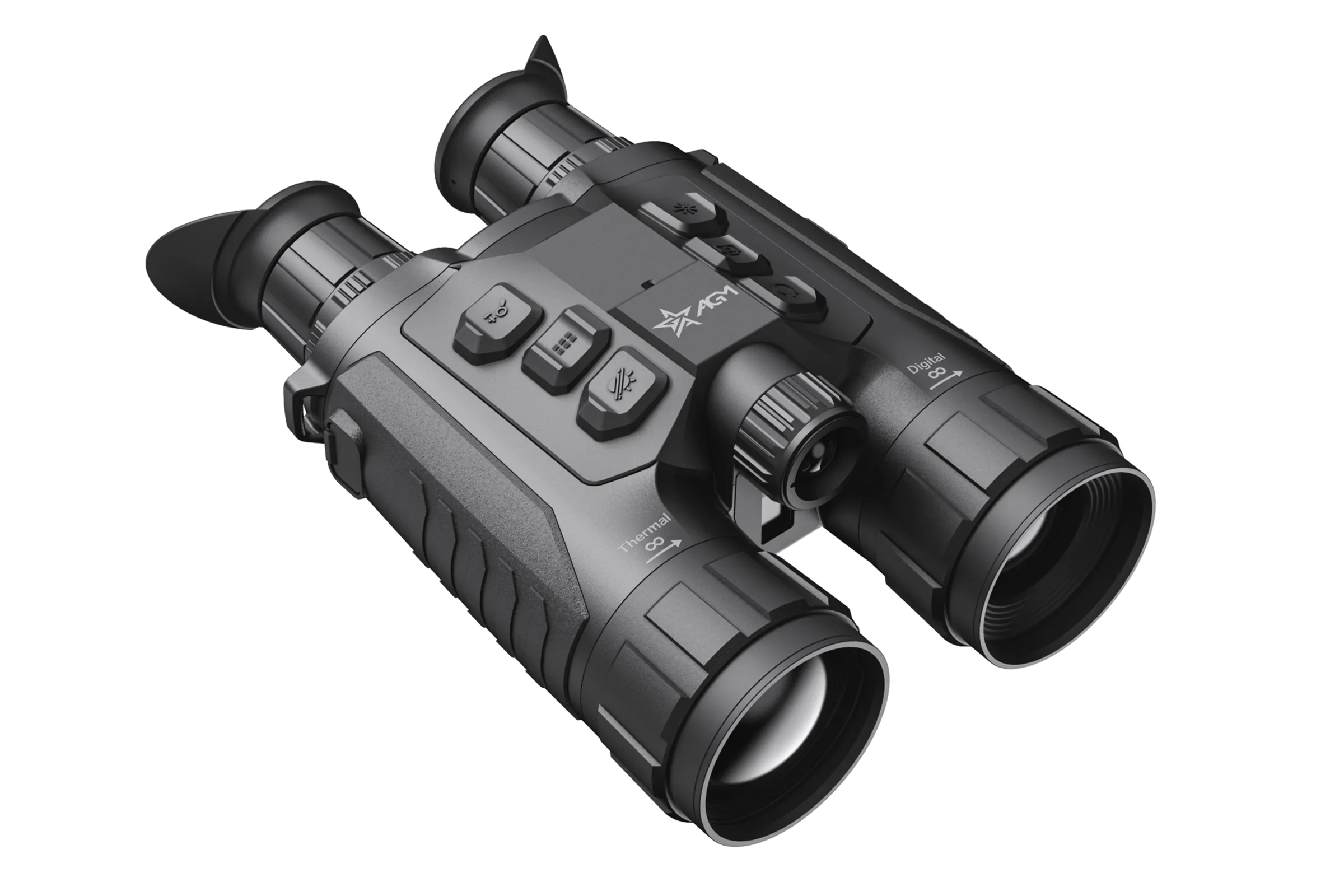

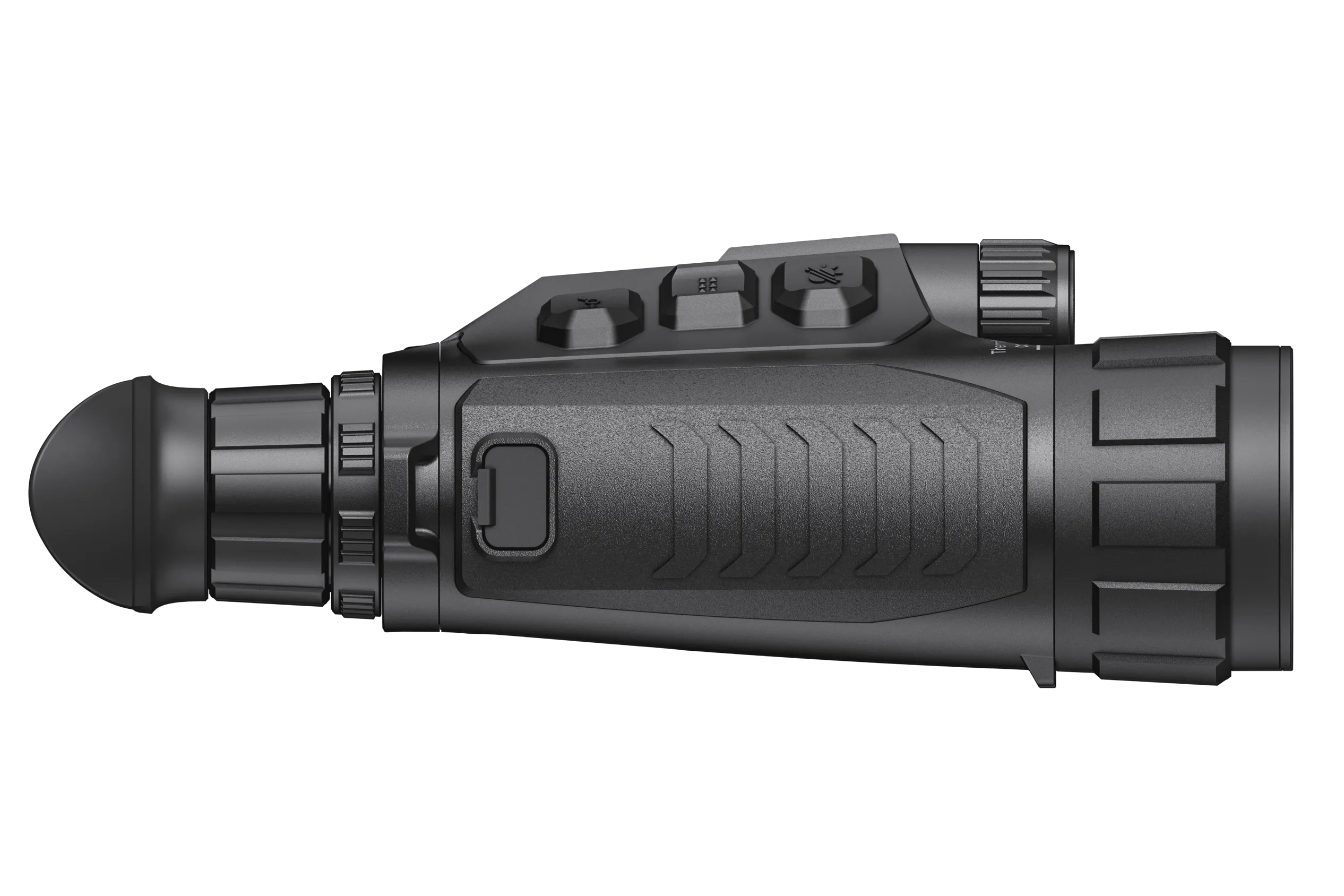

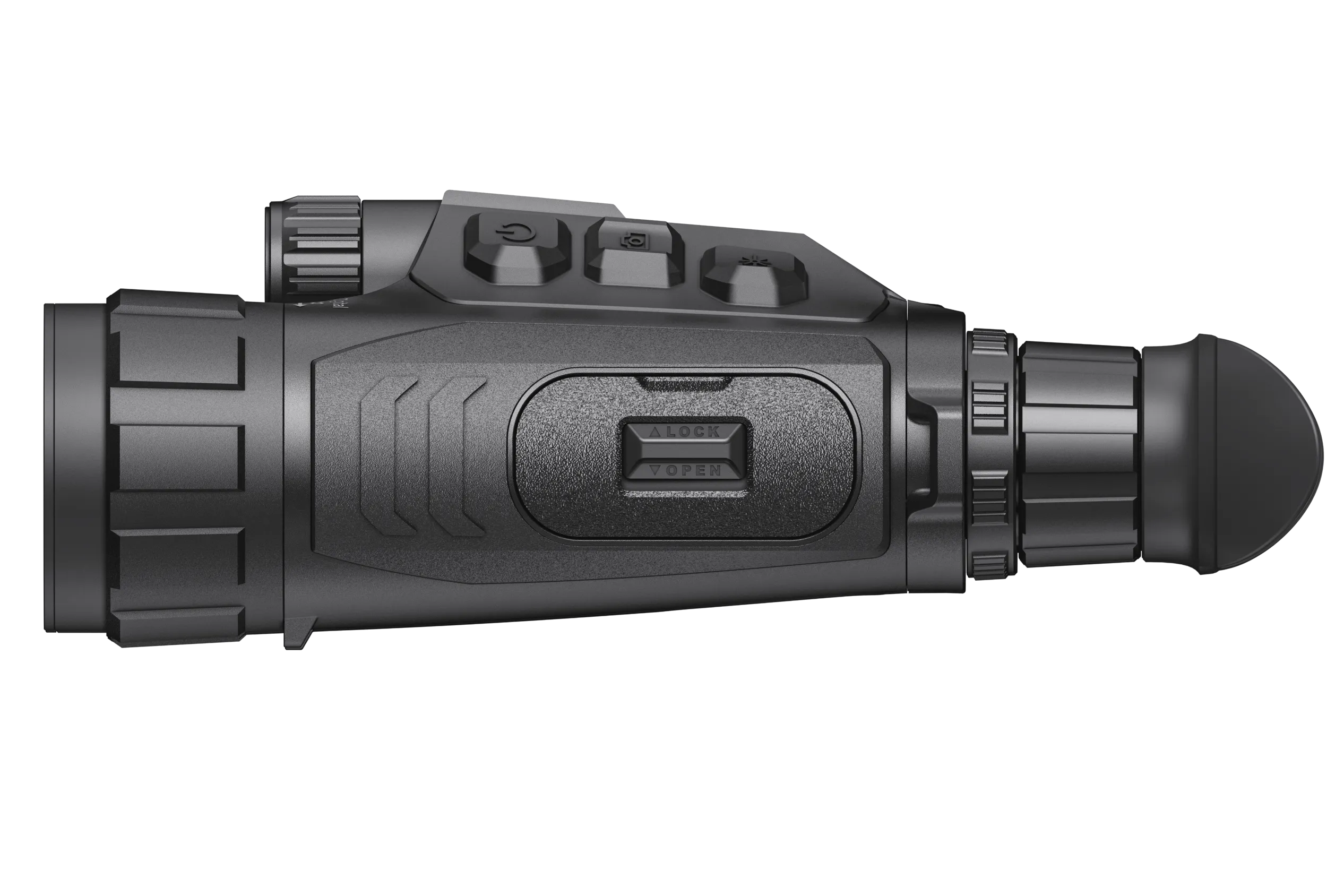

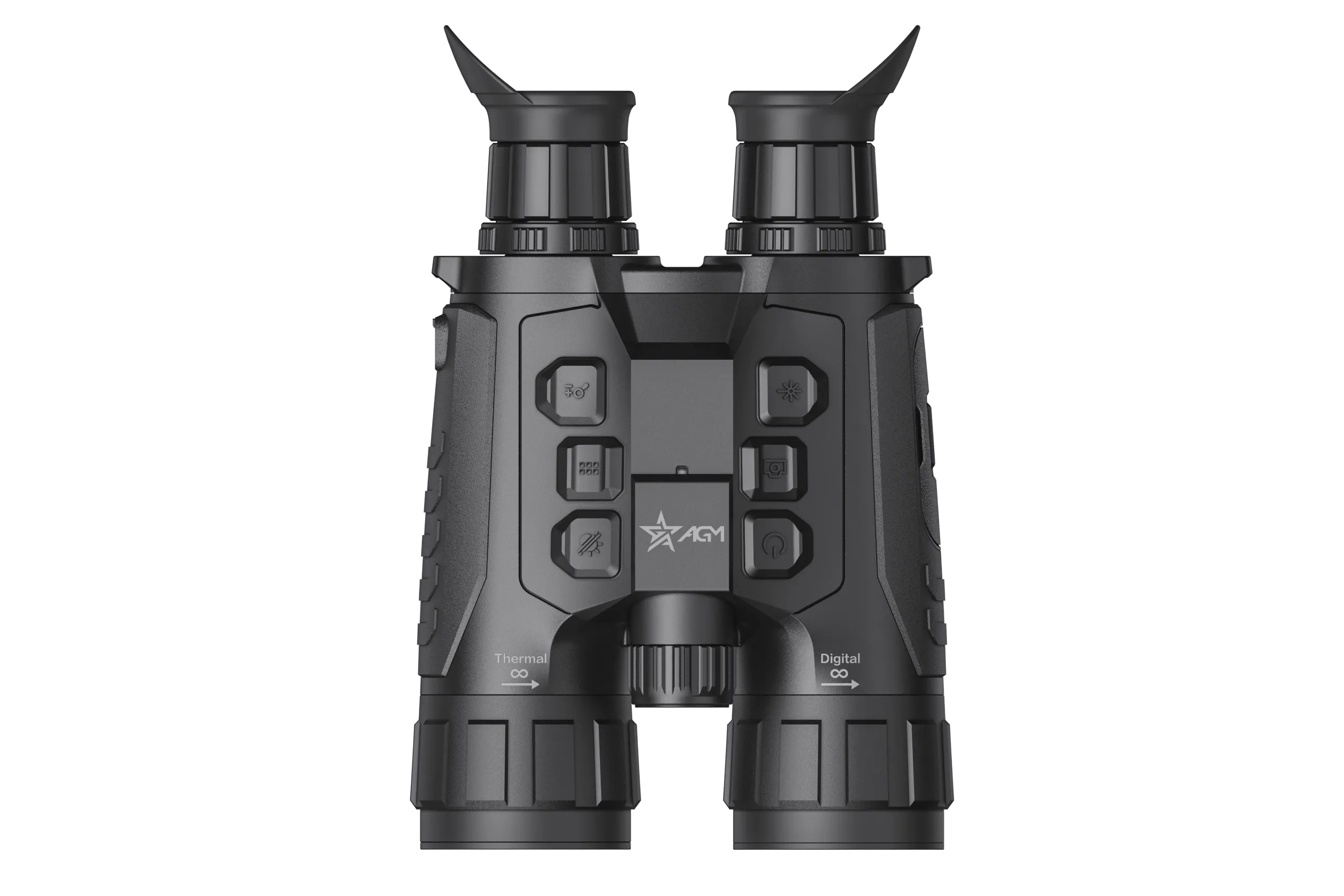

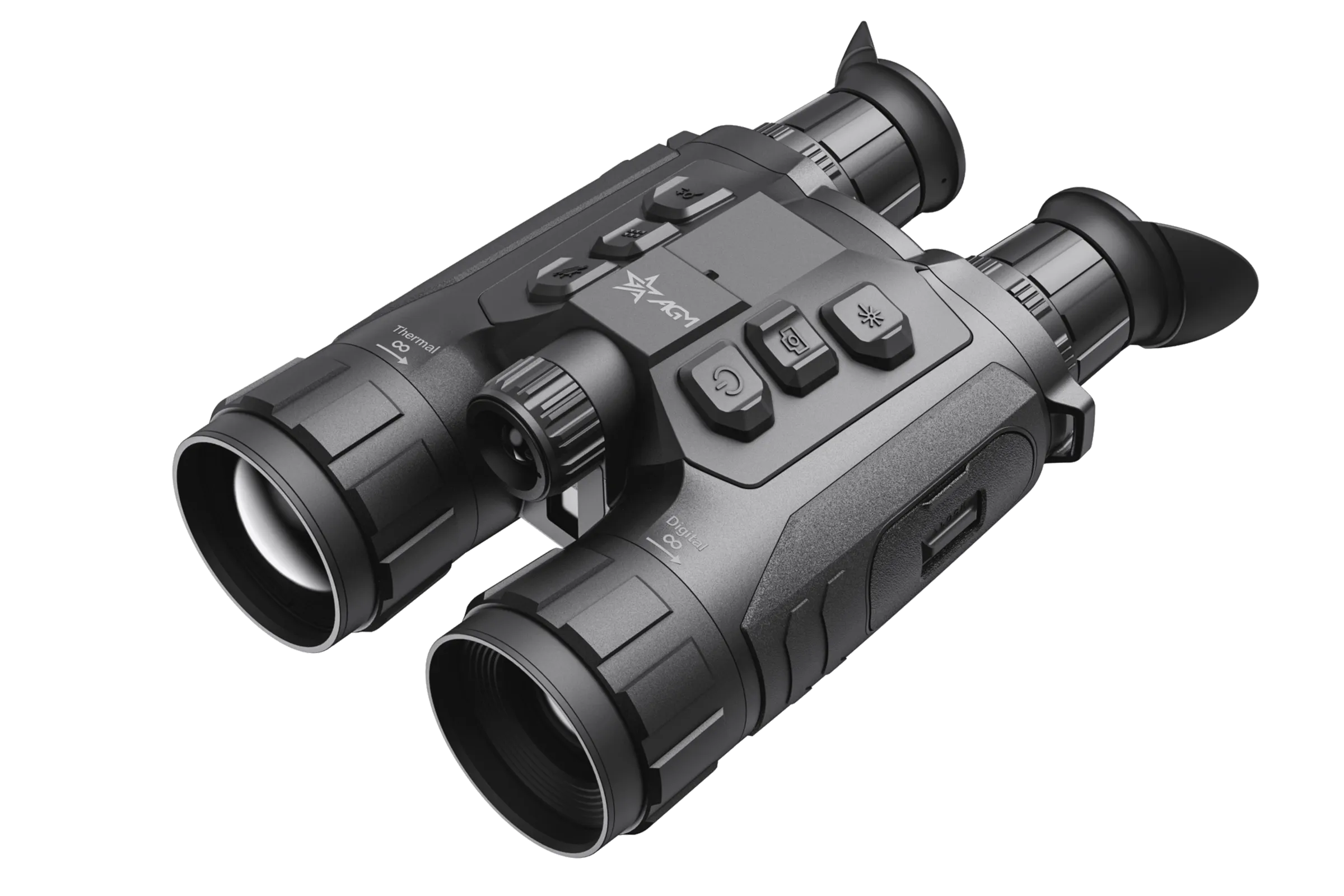

AGM ObservIR LRF 50-640 Fusion Thermal Imaging & CMOS Binocular with Built-in Laser Rangefinder
Expected availability: End of April 2025
The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35 mm objective lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, picture-in-picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger.
Features
- Dual-spectrum thermal and digital day/night system
- 12μm high-sensitivity thermal sensor
- Superior sub-15 milikelvin thermal sensitivity
- 640x512 thermal resolution
- 4.5x – 20x thermal magnification
- Digital image processing technology
- Ultra-low illumination optical channel
- 3840×2160 optical resolution
- Built-in IR illuminator
- Eye-safe 1,000 m laser rangefinder
- 1920×1080 resolution, 0.49-inch OLED display
- Digital Magnetic Compass
- Built-in GPS module
- Video/audio recording and snapshot capture
- Built-in 64 GB EMMC storage
- Wi-Fi hotspot
- Standby mode
- 8.5 hr continuous operation on a single charge
- Auto screen-off function to saving energy
- External power supply capability
- Waterproof and dustproof
- 5-year warranty
Specifications
| Specification | Details |
|---|---|
| Thermal Detector | 12μm VOx Uncooled Focal Plane Array |
| Thermal Resolution | 640 × 512 |
| Refresh Rate | 50 Hz |
| NETD | Less than 15 mK (25°C, F#=1.0) |
| Thermal Channel Lens System | 50 mm; F1.0 |
| Thermal Channel Field of View | 8.8° × 5.3° |
| Thermal Channel Magnification | 4.5x / 9x / 13.5x / 20x |
| Diopter Adjustment | -5 to 3 |
| Detection Range (6’ object) | 2,600 m |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Thermal Channel Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Scene Mode | Jungle, Recognition |
| Optical Digital Sensor | 3840×2160, 1/88” Progressive Scan CMOS |
| Optical Channel Magnification | 5.5x / 11x / 16.5x / 22x |
| Optical Channel Field of View | 7.3°× 4.1° |
| Optical Module Lens System | 60 mm, F2.2 |
| Optical Channel Palettes | Day, Night, Auto |
| Viewing Range at Night | 400 m |
| Diopter Adjustment | -5 to 3 |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Monitor | 1920×1080, 0.49 inch, OLED, 50 FPS |
| Distance Measurement | Laser Rangefinder: up to 1,000 m, ±1 m accuracy |
| Laser Wavelength | 905 nm |
| Laser Safety Class | Class 1 |
| Infrared Light | Built-in 850nm Smart IR. Power and beam angle adjustment |
| Wi-Fi Hotspot | Yes |
| PIP | Yes |
| Hot Track | Yes |
| Digital Magnetic Compass | Yes |
| GPS | Yes |
| Zoom Pro | Yes |
| Image Boost 2.0 | Yes |
| Standby Mode | Yes |
| Built-in Storage | 64 GB EMMC |
| Video/Audio Recording | Yes / Yes |
| Image Capture | Yes |
| Local Album | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion Battery Pack |
| Battery Life | Up to 8.5 hours continuous running (@25°C, WiFi, IR and LRF off) |
| Power | 5 VDC/9 VDC, 3 A; USB Type-C interface; Supports external power supply; Support direct charging; Supports fast charging |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) |
| Protection Level | IP67 (Waterproof) |
| Dimensions | 229 × 148 × 80 mm (9.0 × 5.8 × 3.1 in) |
| Weight (w/o batteries) | 0.83 kg (1.83 lb) |
